Walkthrough
How To
What To Know
Walkthrough
Pairing The LEDs
The Salsa 1 and Salsa 2 LED pairing process follows the same steps and is very similar in the pairing and setup process. This guide explains how to connect the LEDs to Fiesta iOS Software so they are ready to customize and use for an event!
What To Know

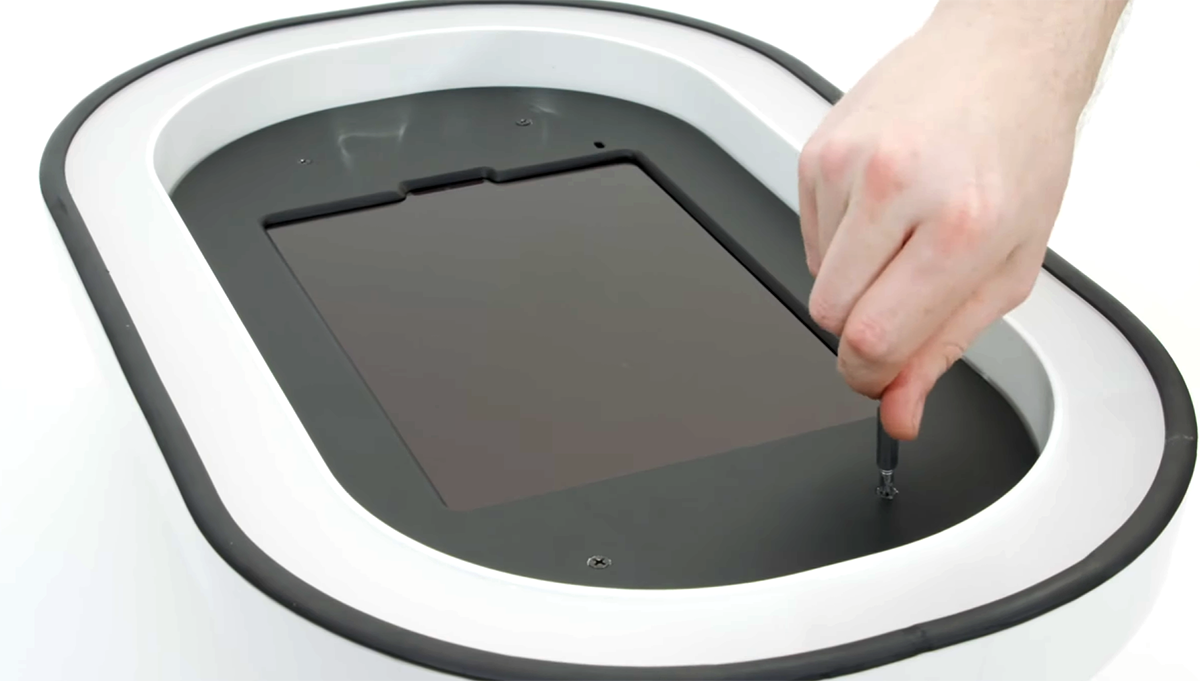

Setting Up The iPad And Booth
When preparing to connect the LEDs, confirm the steps below are completed first:
- Install the iPad in the Salsa 1 or Salsa 2 Photo Booth
- Enable Bluetooth on the iPad
- Plug the Salsa 1 or Salsa 2 Photo Booth into power
If these steps have not been completed, please refer to the following guides:
How To
Pair The LED Ring
- Log in to the Fiesta iOS Software
- Select an event or create a new event
- Tap Configure Event
- Tap the Interface tab
- Tap the LED Ring dropdown menu to open the LED Ring settings
- Tap Pair with LED
- Tap a booth to pair with from the list
Note: Salsa 1 Photo Booths will be indicated via the serial number, which will begin with S1 through S5 and follow the pattern: SX-XXXX-XXXXXX
Salsa 2 Photo Booths serial numbers will begin with S-2 and follow the pattern:
S-2XX-XXXX-XXXXX
What To Know

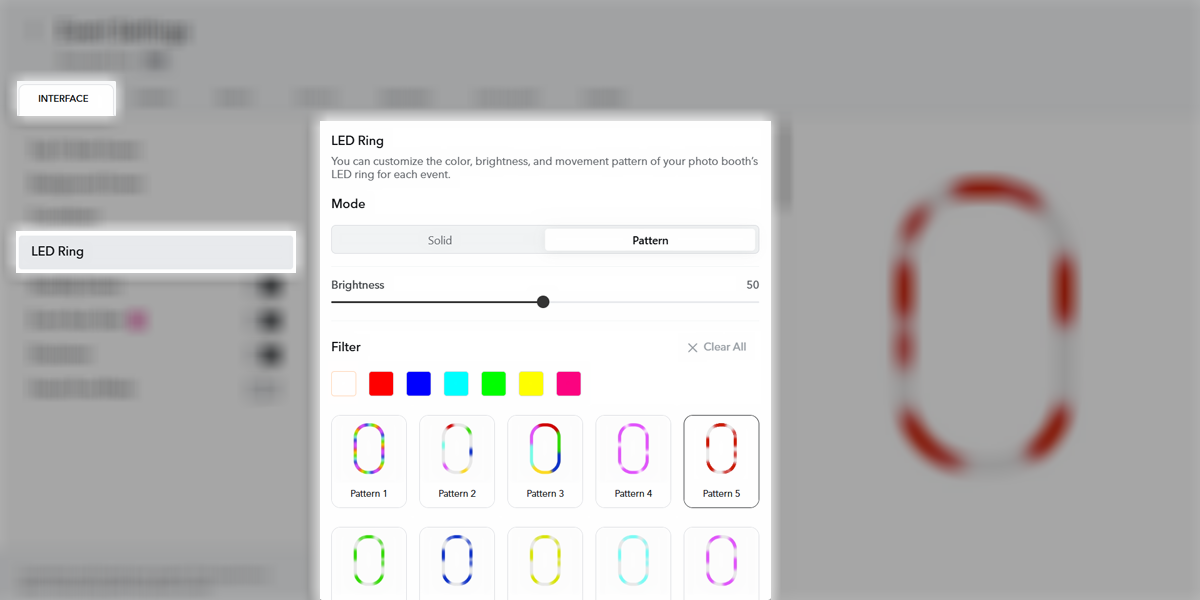

Customizing The LEDs
The LED Ring can be customized for an event or changed during an event at any time from the Fiesta Software.
Changes can be applied to a running event in real time, as long as the iPad is connected to Wi-Fi and the LED Ring is paired with the iOS Fiesta Software.
Learn more about customizing the LED Ring.
What To Know

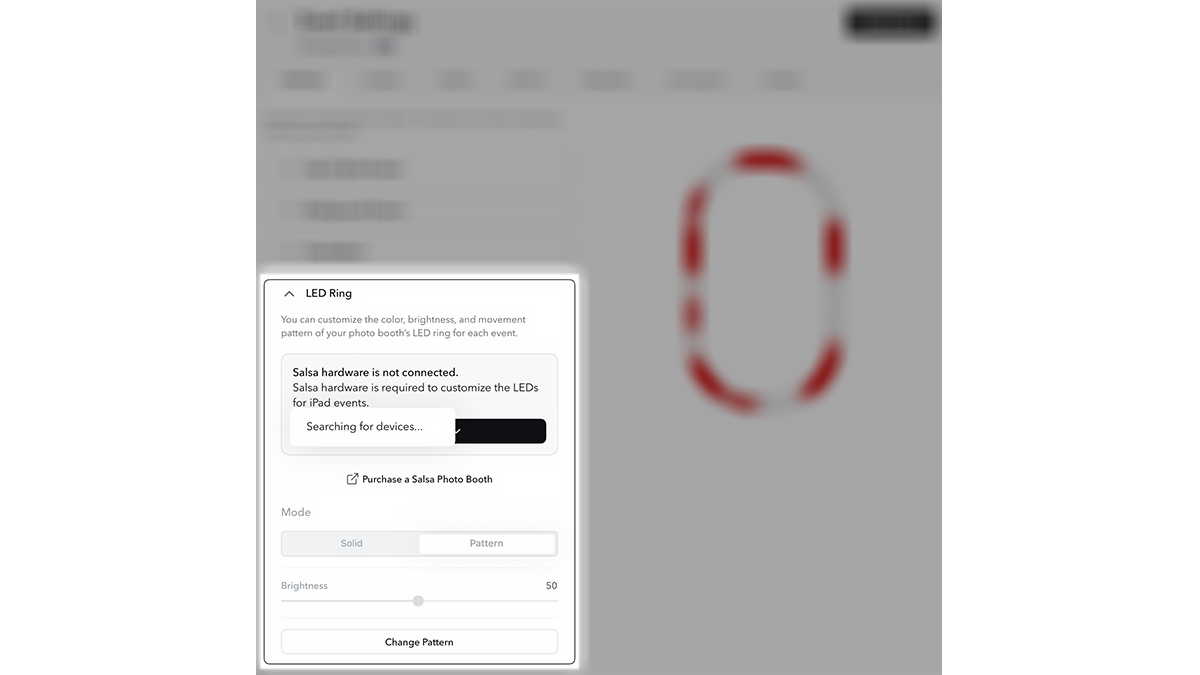

Troubleshooting LED Pairing
If the booth is not appearing or if an error occurs after tapping Pair with LED:
- Check that the Salsa 1 or Salsa 2 Photo Booth is plugged into power
- Check that the iPad has Bluetooth turned on
If the LED Ring is paired but the lights are not turning on:
- Tap Unpair LED and try pairing again
- Unplug the Salsa Photo Booth from power and plug it back in
- Restart the iPad
Need more help? Check out the complete Salsa 1 or Salsa 2 LED Troubleshooting guide here.
How To
Unpair The LED Ring
- Log in to the Fiesta iOS Software
- Tap an event or create a new event
- Tap Configure Event
- Tap the Interface tab
- Tap the LED Ring dropdown menu to open the LED Ring settings
- Tap Unpair LED
Note: Unpairing the LED Ring after an event is not required, but it must be unpaired to connect with a different device.
What To Know
FAQ
Can the Fiesta software be paired with other booth LEDs?
- The Fiesta Software has not been tested with any other booth LEDs, and compatibility cannot be guaranteed.
Can I control the Salsa 1 or 2 LEDs with another software?
- Attempting to control the Salsa 1 or Salsa 2 LEDs with any software other than the Fiesta Software will result in voiding your booth's warranty.
Should I follow the same process to pair the Guac LEDs?
- The Guac Photo Booth does not require pairing with the LED ring when the Guac brain has been properly connected to the Fiesta Software.
Learn more about connecting the Guac Photo Booth to the Fiesta iOS Software.
Help! My LEDs are flickering!
My LEDs are paired, but they are not turning on or changing color, what do I do?
