How To Set Up Wired Printing

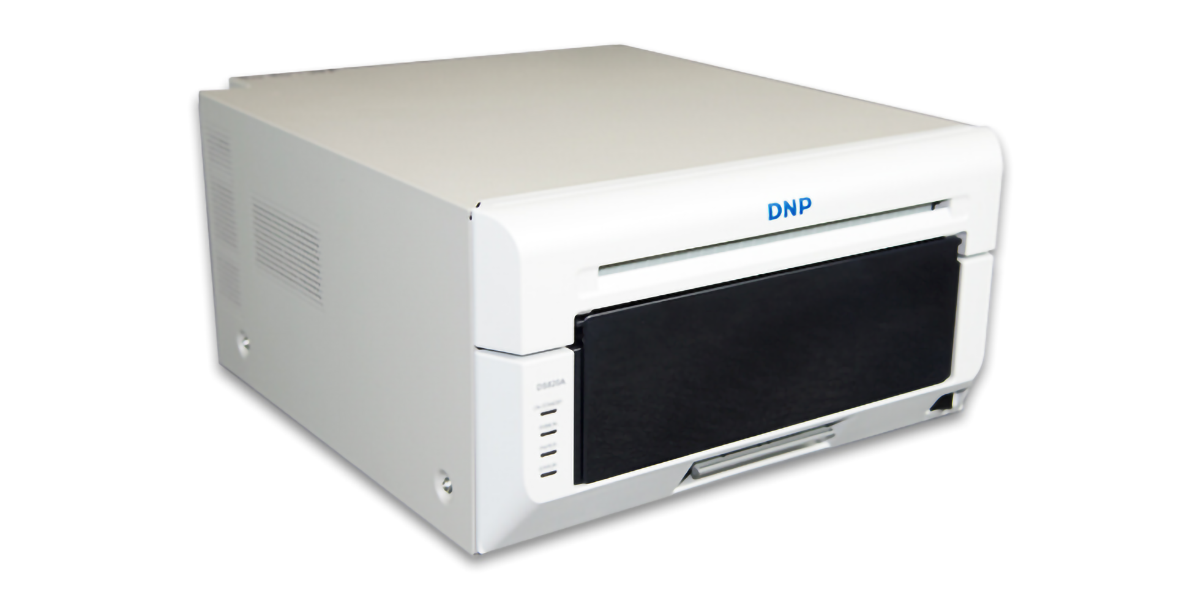

Required parts to assemble the DNP DS620A printer:
- DNP DP-DS620A printer
- Printer media
- Paper roll
- Ink ribbon
- Printer AC power cable
- Printer USB-A to USB-B cable
What To Know

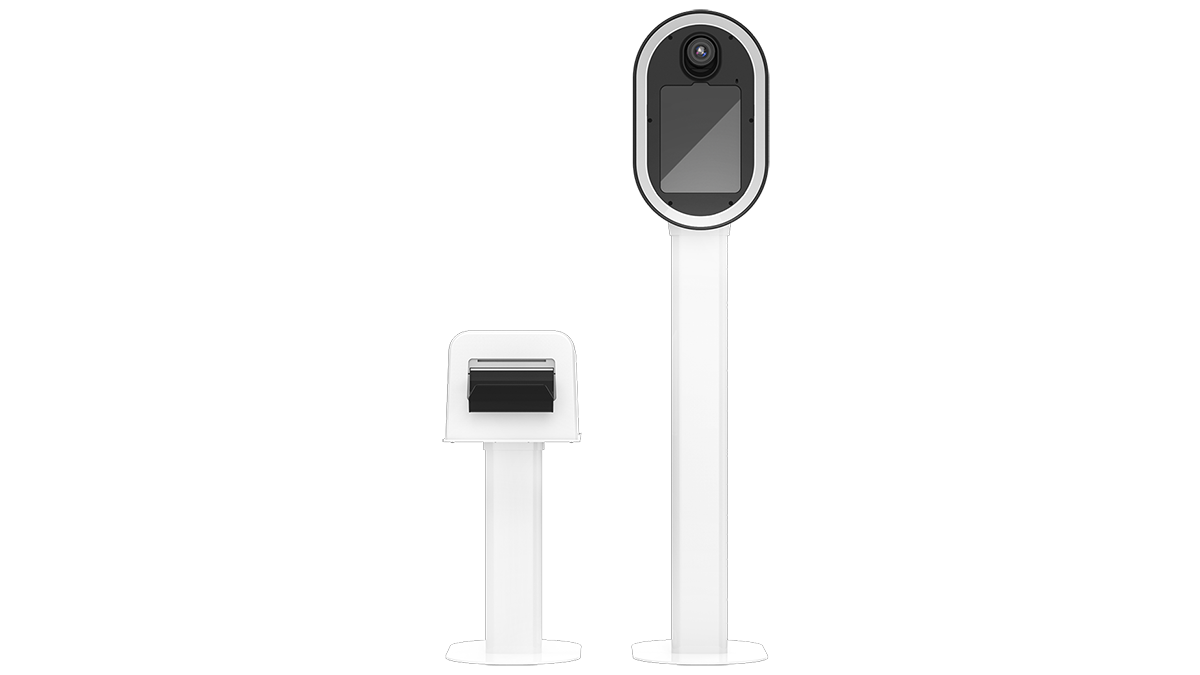

Guac And Chips Assembly
Before setting up the Guac and Chips for wired printing, it is important to assemble both the Guac Photo Booth and the Chips printer.
Learn more about assembling the Guac and Chips
- Assemble the Guac Photo Booth base plate, poles, and Guac head.
Note: Make sure to run the printer cable up through the poles along with the AC power cable for Guac. - Plug the square USB-B end of the printer cable and the AC power cable into the printer
- Connect the printer to power and turn it on
- Connect Guac to power and turn it on
Optional: You do not need to attach Guac's flash and umbrella at this time, as these two components are not required to set up printing. However, you will want to attach them before an event for the best capture quality.
How To
Configure The iPad's Ethernet Settings
- Open the Settings app on the iPad
- Tap Ethernet in the left navigation
- Tap Configure IP
- Select Manual
- Tap IP Address
- Enter in 172.16.0.7
- Tap Subnet Mask
- Enter in 255.255.255.0
How To
Set Up Wired Printing
- Open the Fiesta iOS App
- Select an event or create a new event
- Select Configure Event
- Select the Sharing tab
- Toggle on Printing
- Toggle on Use Chips as Default Printer
Note: If the printer cannot be found, make sure Guac is plugged in, powered on, and that all printer and printer settings are correct. View the troubleshooting steps. - Adjust other Print settings as needed
How To

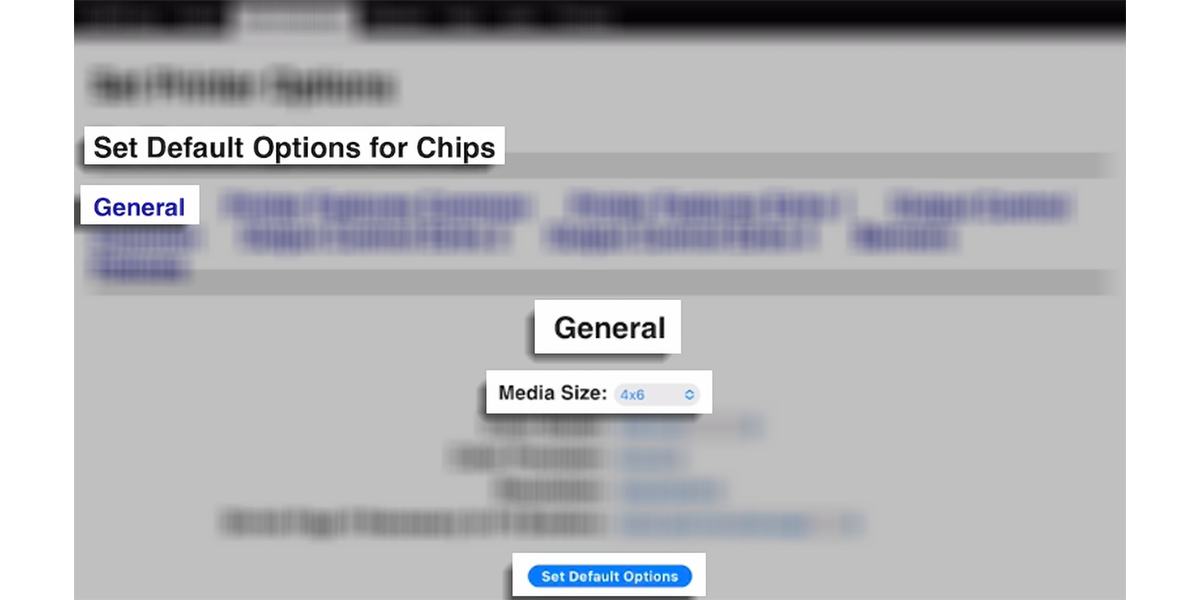

Adjust Print Media Size
By default, the DNP DS620A printer is set up to print 4x6 images. If your event includes a 2x6 Photo Template, you will need to adjust the print media size.
- Open the Fiesta iOS App
- Tap the Account icon in the upper right (typically your initials)
- Tap Hardware Dashboard
- Tap Chips Dashboard
- Tap Adjust Printer Media Size under Printer Settings
- Tap the Administration dropdown menu
- Select Set Default Options
- Tap the Media Size dropdown menu
- Select 2x6*2 for 2x6 photo templates
- Tap Modify Defaults
- Tap Done in the top left corner to return to the Fiesta iOS App
Note: You may be required to enter a username and password to access the Administration menu.
Username: printer
Password: password
What To Know
Printing 2x6 Photo Templates
The printer is set up to print 4x6 images and Photo Templates by default. To print different sizes, the media size will need to be adjusted within the printer’s settings.
You can change the print media size by following these steps.
To print 2x6 Photo Templates:
- Set the print media size to 2x6*2
- Set the Photo Template to Double 2x6 in Fiesta
Learn more about Fiesta’s Photo Template settings
Note: The DNP DS620A does not support printing single 2x6 Photo Templates.
The 2x6*2 setting allows the printer to print two copies of the Photo Template on one 4x6 piece of paper and cuts it into two 2x6 strips.
What To Know

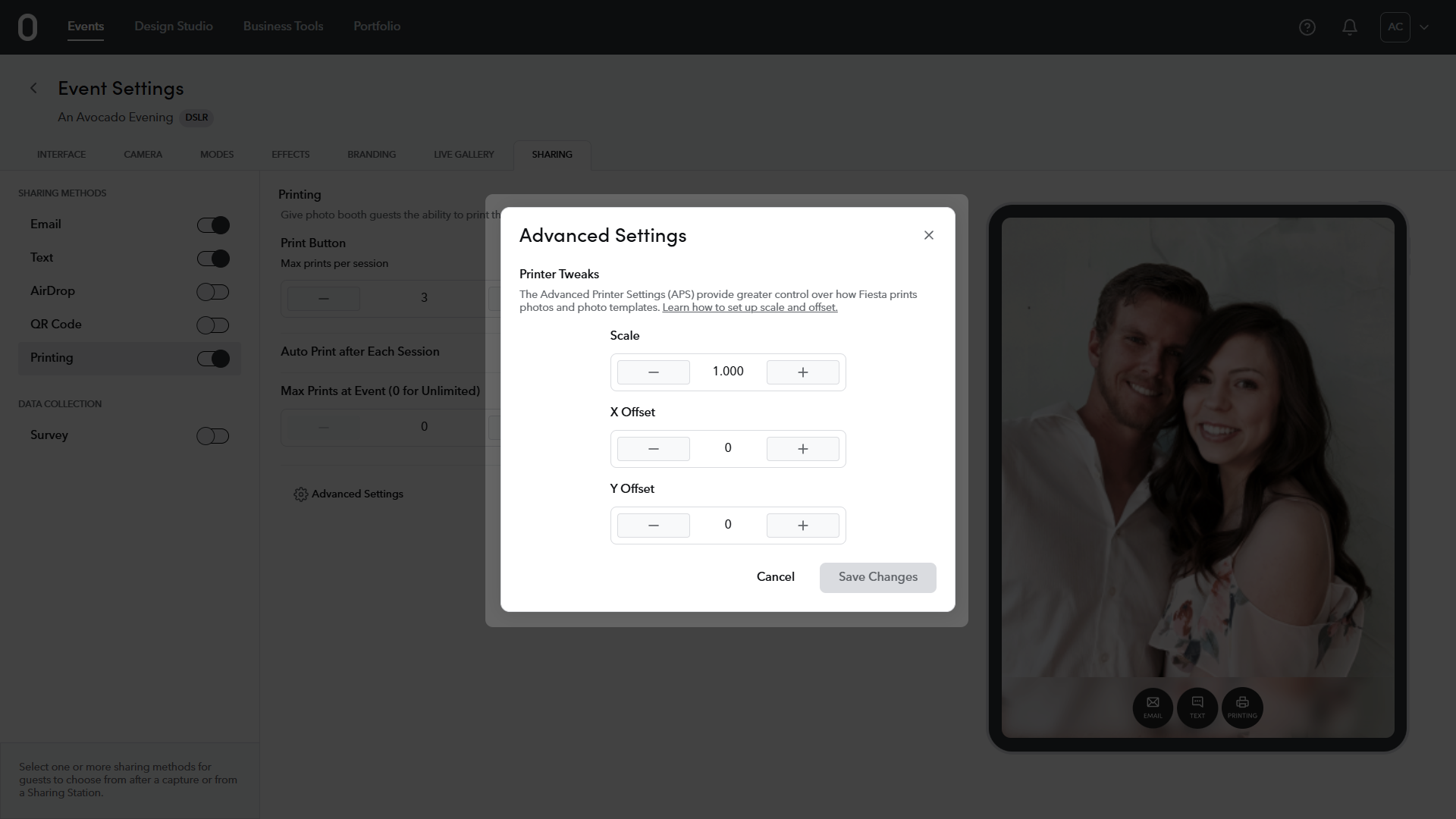

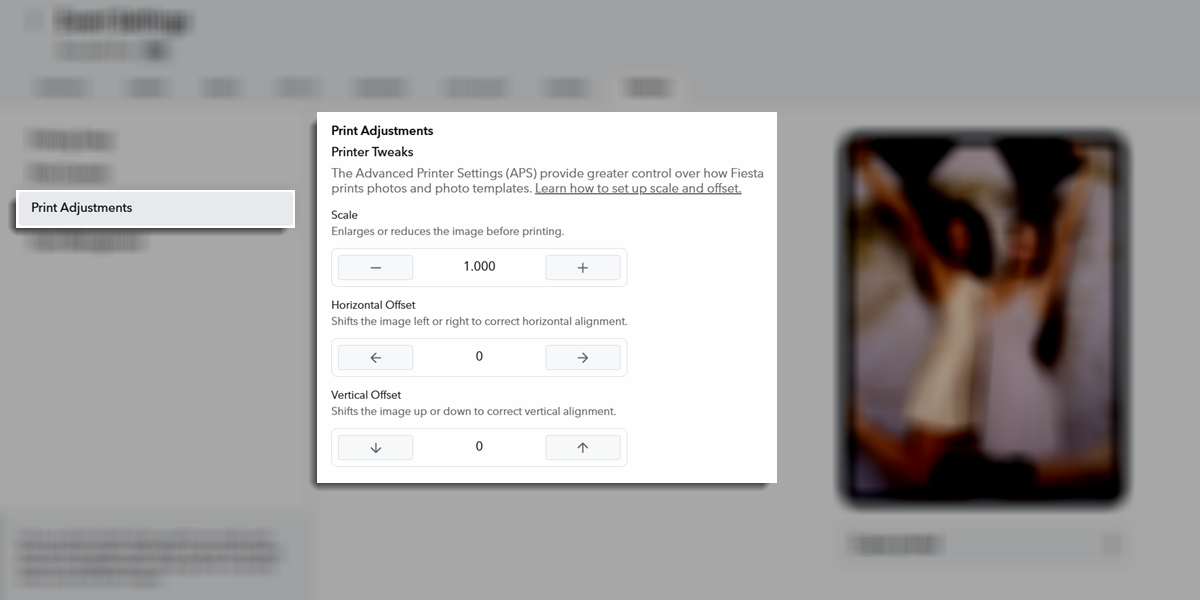

Advanced Print Settings
The Advanced Printing Settings (APS) provide greater control over how the Fiesta Software prints Photo captures and Photo Templates.
APS controls two aspects of the print out:
- Scale: the size of the border around the printed image
- Offset: the alignment of the image printed
These settings can be adjusted if the size of the image or alignment on the print out is not coming out as expected.
IMPORTANT: The Advanced Printing Settings do not affect digital shares, and only change how the images are printed.
Learn more about the Advanced Print Settings
