DSLR Event Camera Settings

Updated

Table Of Contents

Explainer

How To

What To Know

Explainer
What Are DSLR Event Camera Settings?

DSLR Event Camera Settings in the Fiesta iOS App

DSLR Event Camera Settings allow you to fine-tune how captures look when running a DSLR Event using the Fiesta iOS App.

DSLR Event Camera Settings are organized into three sections:

Camera Defaults:

  • Adjust Aspect Ratio and Mirroring for DSLR Event captures

Photo Settings:

  • Adjust the capture settings used for Photo and GIF Capture Modes

Video Settings:

  • Adjust the capture settings used for Boomerang, Video, and Slo-Mo Capture Modes

Notes:

  • Fiesta’s camera settings are separate from the settings configured directly on the Canon DSLR camera. If captures appear zoomed in or out of focus, confirm the physical camera and lens settings before making adjustments in Fiesta.
  • The default Photo and Video settings provide the best results in most situations when the flash and umbrella are set up correctly.

Learn more about setting up Guac Booth.



Back to top

What To Know
Before You Start

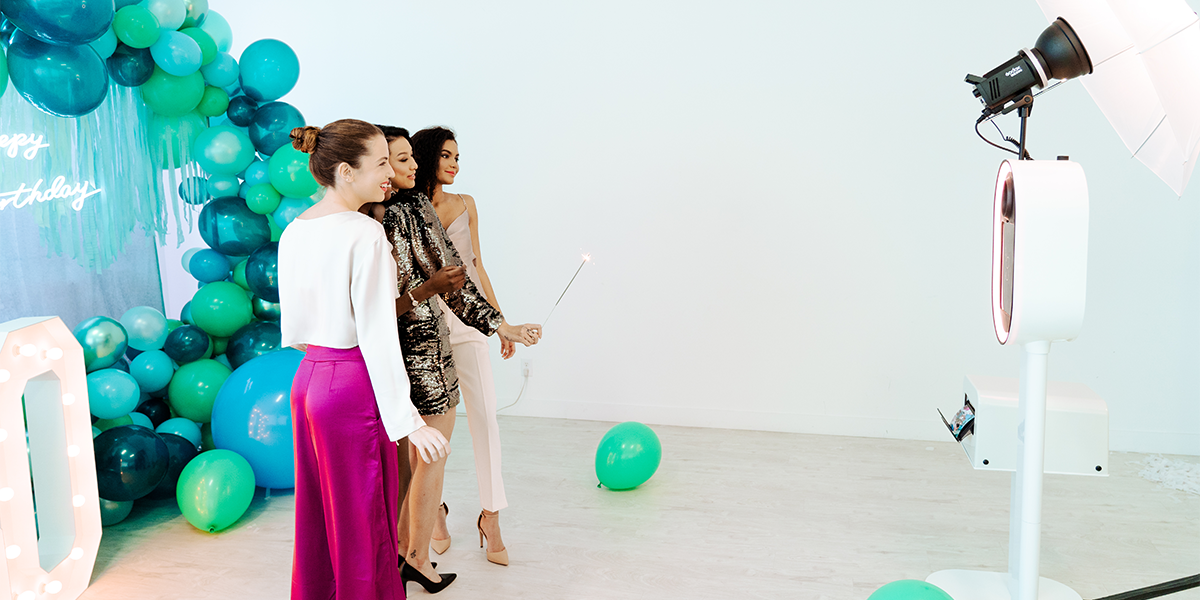

Guac DSLR camera, flash, and umbrella prepared for an Event

Set up the Canon DSLR camera, flash, and umbrella before changing the camera settings in Fiesta. For the best results:

  • Position the photo booth 4 to 5 feet from the backdrop
  • Confirm all Canon Camera Settings
  • Set the lens to 15 mm for the Canon M50 II or 18 mm for the Canon EOS R100
  • Confirm the flash and umbrella are assembled and positioned correctly
  • Take a test capture before starting the Event



Back to top

How To
Access DSLR Event Camera Settings

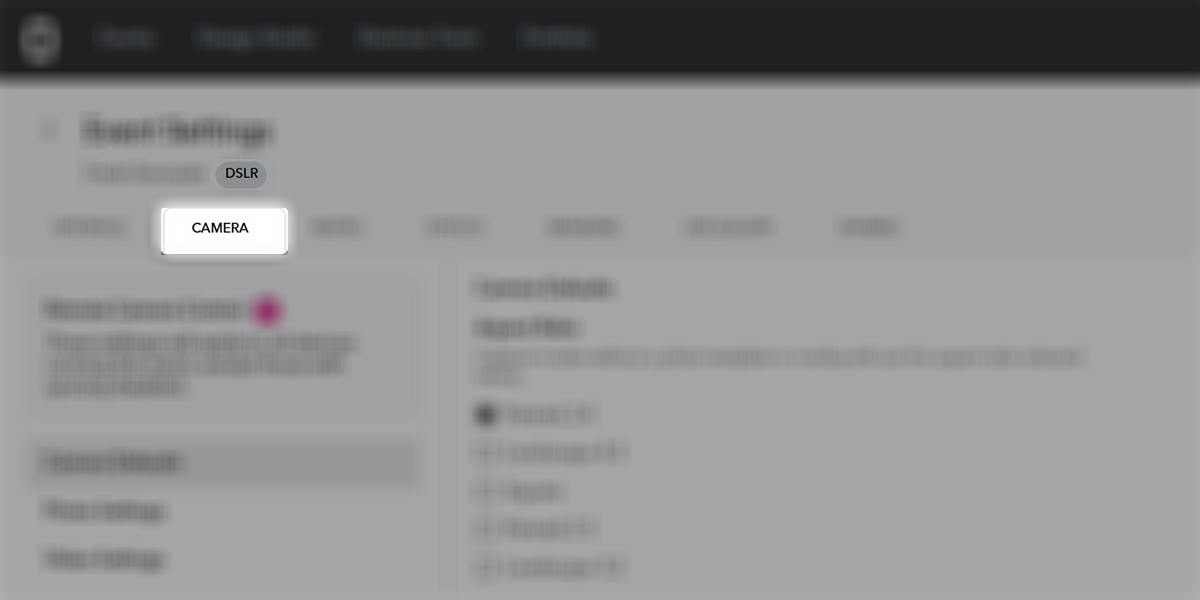

Camera tab in the Fiesta iOS App Event configuration
  1. Log in to the Fiesta iOS App
  2. Tap an existing DSLR Event or create a new DSLR Event
  3. Tap Configure Event
  4. Tap the Camera tab

Note: DSLR Event Camera Settings can also be accessed remotely from the Fiesta Web App.

Learn more about Remote Camera Control



Back to top

What To Know
Camera Defaults

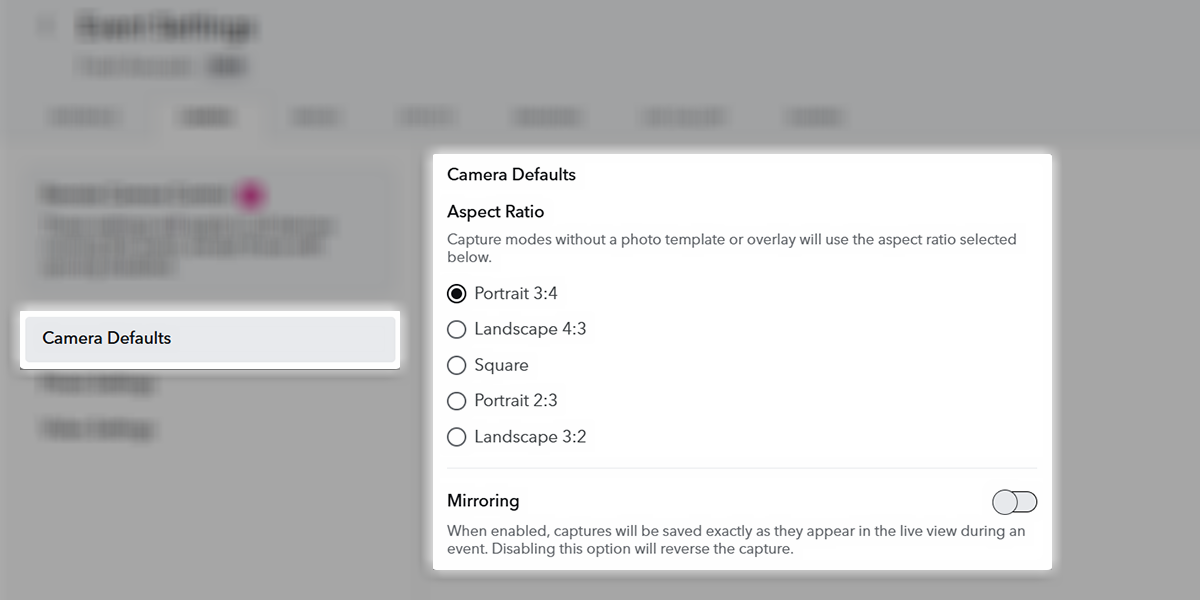

Aspect Ratio and Mirroring options under Camera Defaults

The Camera Defaults section includes Aspect Ratio and Mirroring. These settings are available and function consistently across iPad, DSLR, and 360 Events.

Note: A Photo Template or Overlay may affect how captures are framed. Review the Event’s Aspect Ratio settings and take a test capture before the Event.

Learn more about Aspect Ratio

Learn more about Mirroring



Back to top

What To Know
Photo Settings

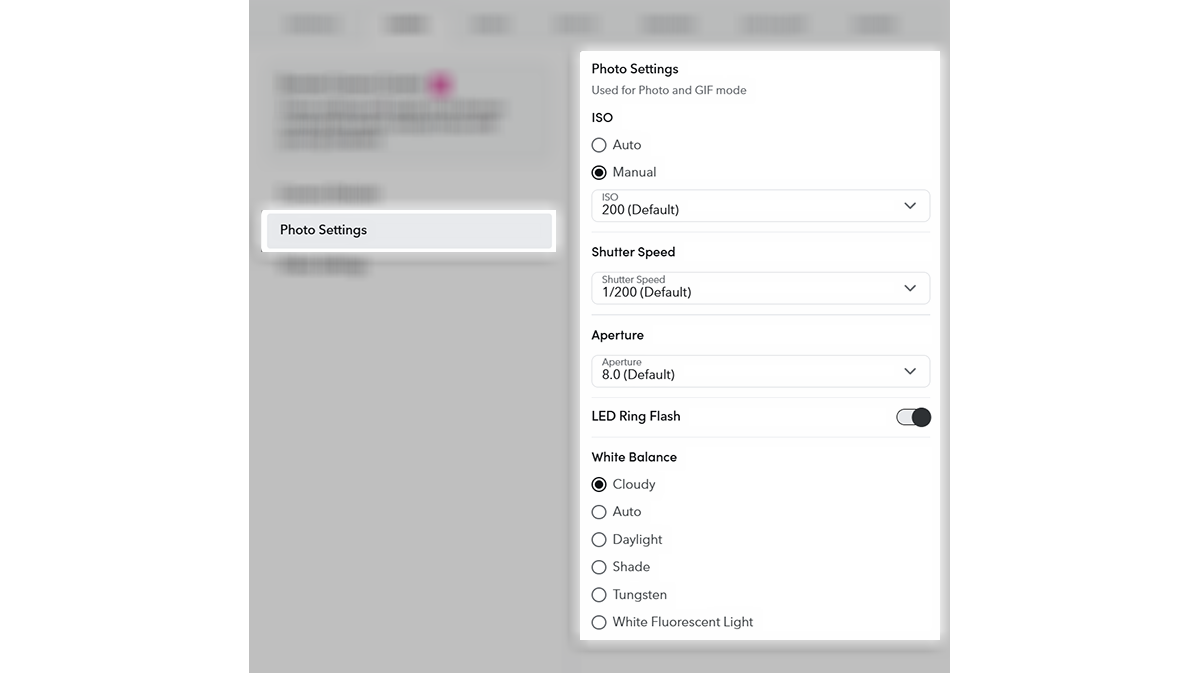

Default DSLR Photo Settings for Photo and GIF Capture Modes

Photo Settings control captures taken using Photo and GIF Capture Modes.

Default Photo Settings:
  • ISO: 200 (Manual)
  • Shutter Speed: 1/200
  • Aperture: 8.0
  • LED Ring Flash: On
  • White Balance: Cloudy

The default settings provide the best results in most situations when the flash and umbrella are set up correctly.

Common Adjustments:
  • For captures that are too dark or overexposed, review the ISO, Shutter Speed, and Aperture settings
  • For captures with a blue, purple, orange, or overly warm appearance, review the White Balance setting
  • For blurry or zoomed-in captures, confirm the physical lens and Canon DSLR camera settings before making adjustments in Fiesta

Make one adjustment at a time and take a test capture after each change to fine-tune the results.

Learn more about adjusting DSLR Photo and Video Camera Settings



Back to top

What To Know
Video Settings

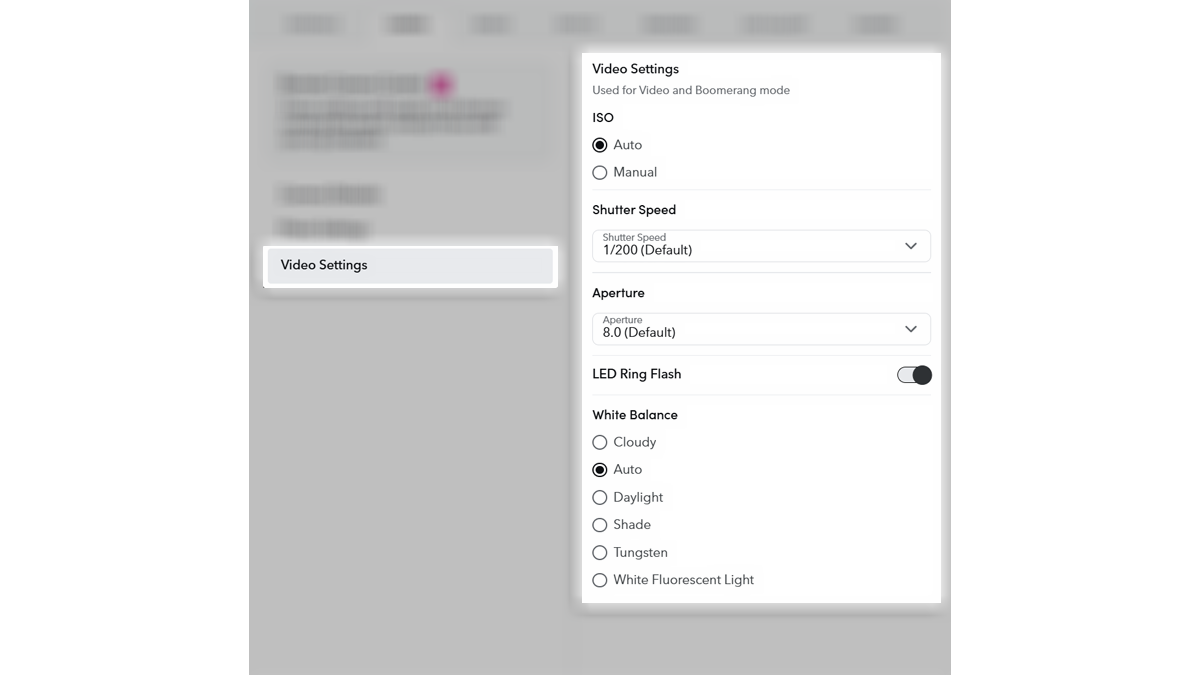

Default DSLR Video Settings for Boomerang, Video, and Slo-Mo Capture Modes

Video Settings control captures taken using Boomerang, Video, and Slo-Mo Capture Modes.

Default Video Settings:
  • ISO: Auto
  • Shutter Speed: 1/200
  • Aperture: 8.0
  • LED Ring Flash: On
  • White Balance: Auto

The default settings provide the best results in most situations when the flash and umbrella are set up correctly. If captures taken using Boomerang, Video, or Slo-Mo Capture Modes are too dark, overexposed, blurry, or otherwise do not look correct, these settings can be manually adjusted.

Make one adjustment at a time and take a test capture after each change to fine-tune the results.

Learn more about adjusting DSLR Photo and Video Camera Settings



Back to top

What To Know
FAQ

Are these settings different from the settings on the Canon DSLR camera?

  • Yes. The camera settings in Fiesta are separate from the settings configured directly on the Canon DSLR camera. Adjusting the camera settings in Fiesta does not change the camera’s physical configuration or lens settings.

Are these settings different from the settings for iPad and 360 Events?

  • Yes. The available Photo and Video Settings vary by Event Type, while Camera Defaults function consistently across iPad, DSLR, and 360 Events.

Note: 360 Events are only available on the Fiesta Pro subscription tier.

How do I know which settings are default once I change them in the app?

  • Each default option is labeled (default) in the app.
