Guac Cable Connections
- Guac Brain USB-C Charging Cable
- Guac Brain Ethernet Cable
- Guac Power Cord
- Belkin Surge Protector
- Printer USB Cable
- Camera USB Cable
- Flash Power Cable
- Flash Sync Cable
- AS-15 Flash Adapter
Guac Flash
- Godox MS300-V Studio Flash
- Godox AD-R6 Flash Reflector
- Godox Protective Cap
- Flash Tube
- Modeling Lamp Bulb
- Flash Fuse
- Flash Umbrella
Guac Head
Guac Poles
Atlas Stand
Miscellaneous
Flash

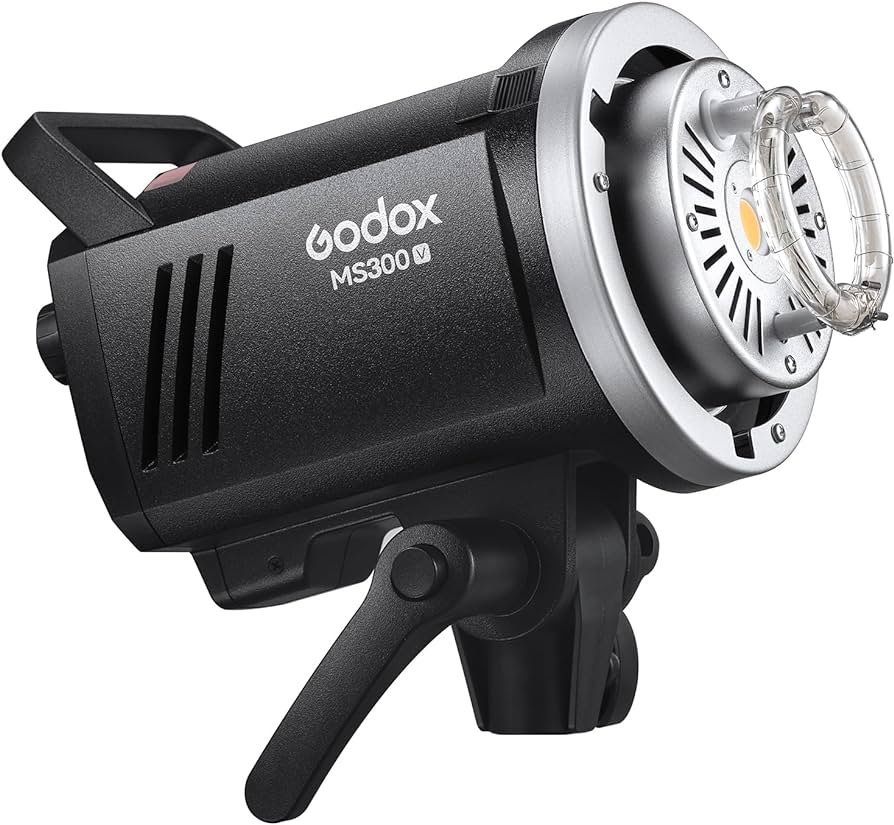

Godox MS300-V Studio Flash
The Godox MS300-V is the primary light source/flash for the Guac. It is critical to have a functional flash to ensure your Guac captures look their best. With the new and improved LED flash that has replaced the traditional modeling bulb, this unit will not need the modeling bulb replaced as often as traditional flash units. We recommend this unit to replace any flash unit that came with the Guac.
Note: You can use a different model flash with your Guac booth if it supports a camera sync cable. However, we haven’t tested other flashes and can’t provide support for anything outside of the one included with Guac.
Where to Purchase:
Flash

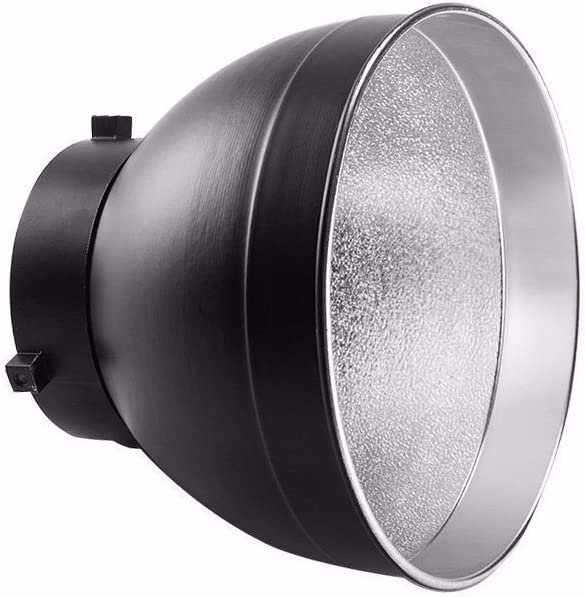

Godox Ad-R6 Flash Reflector
The replacement Reflector for the Godox MS300 and MS300-V models.
Where to Purchase:
Flash

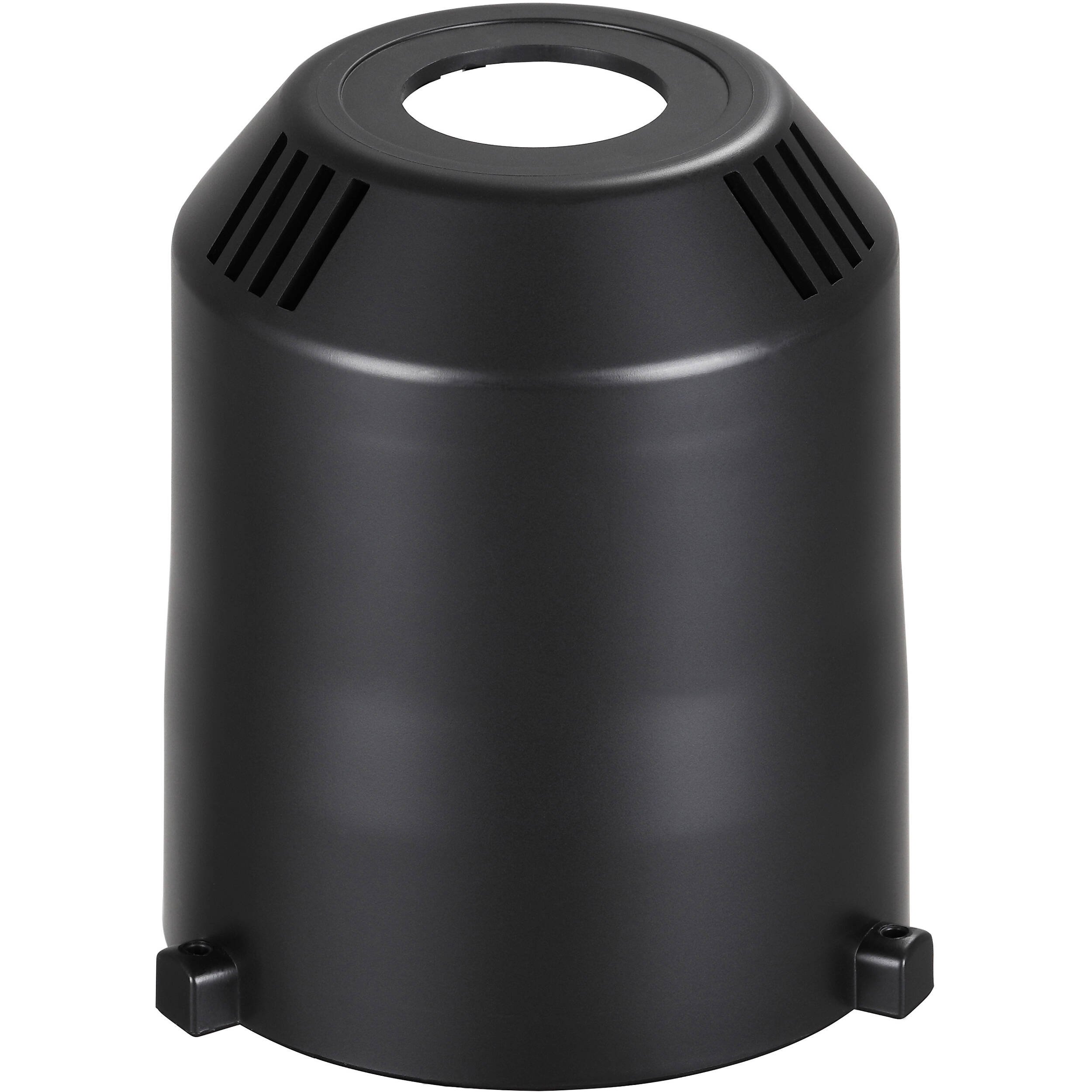

Godox Protective Cap
The replacement protective cap for the Godox MS300 and MS300-V models.
Where to Purchase:
Back to top
Flash

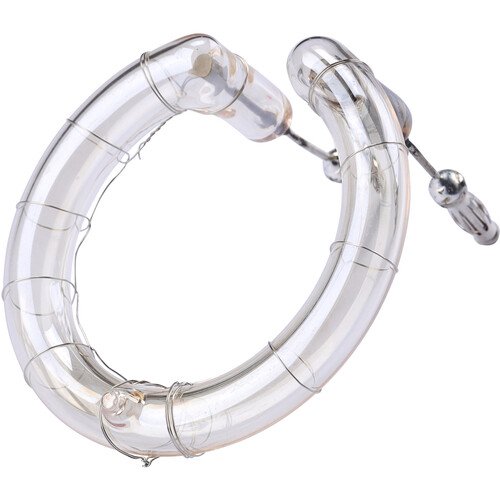

Guac Flash Tube
The replacement flash tube for the Godox MS300 and MS300-V models.
Where to Purchase:
Flash

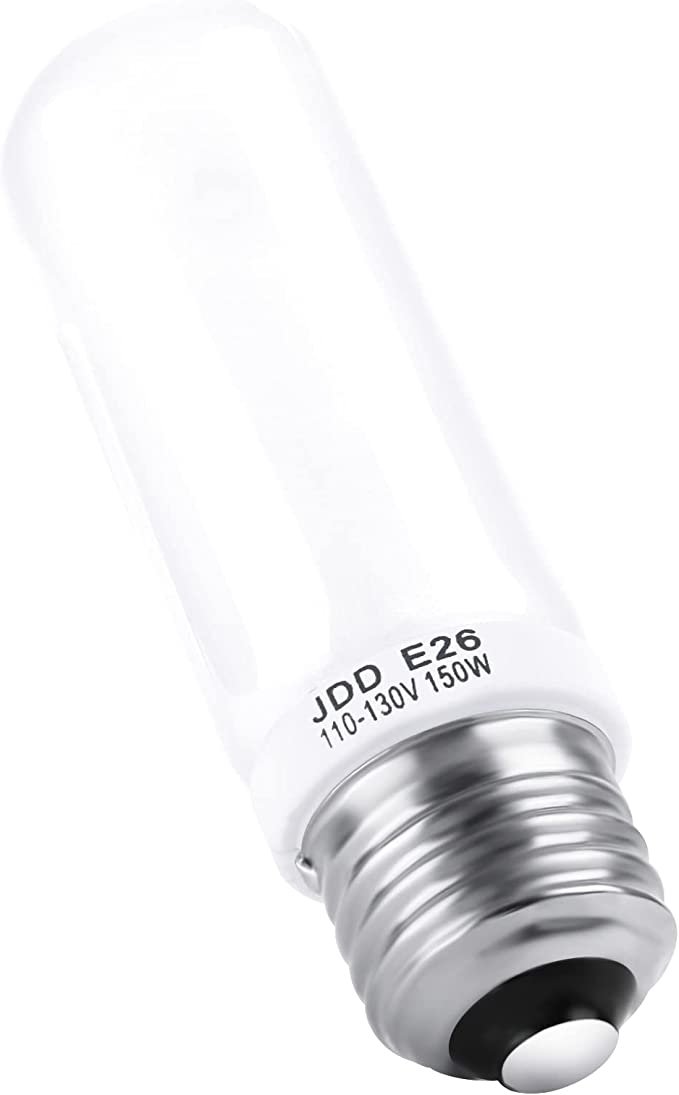

Guac Modeling Lamp Bulb
The replacement modeling lamp bulb for the Godox MS300 model.
Note: The newer Godox Flash unit (the MS300V) has the modeling light built-in, and no longer requires a separate modeling lightbulb.
Where to Purchase:
Back to top
Flash

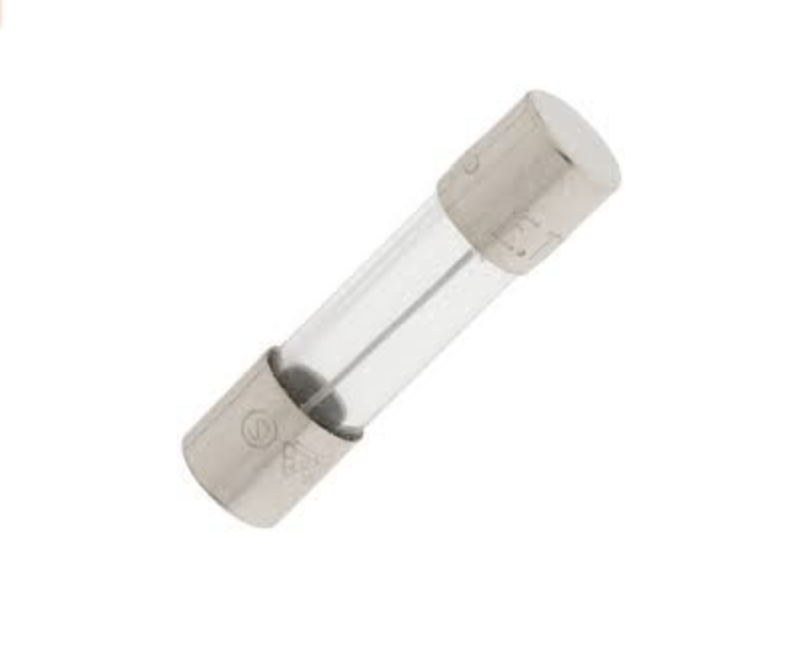

Guac Flash Fuse Replacement
The replacement fuse for the Godox MS300 and MS300-V models.
Where to Purchase:
Flash

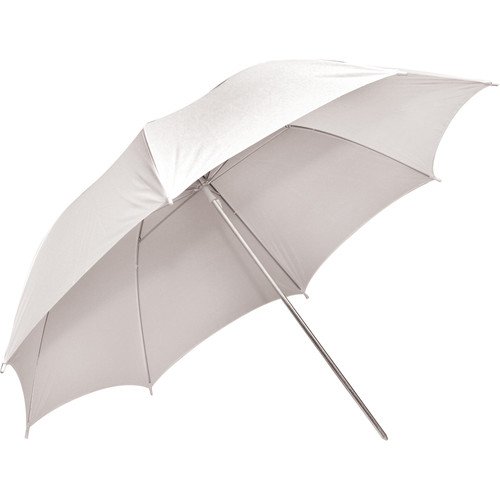

Guac Flash Umbrella
The replacement Flash Umbrella for the Godox MS300 and MS300-V models
Where to Purchase:
Connections

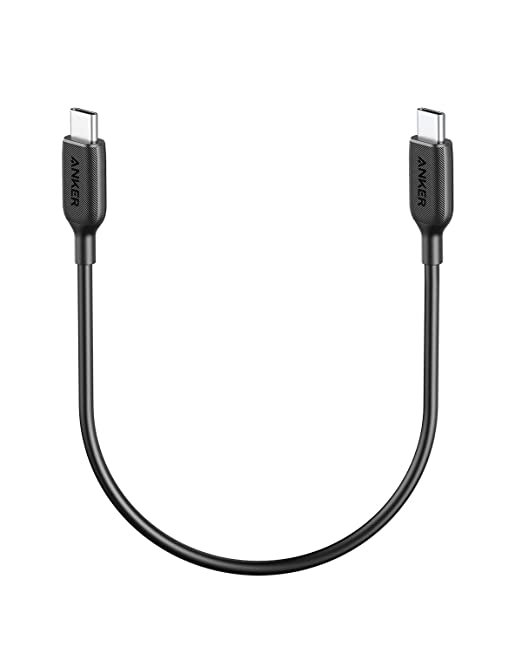

Guac Brain USB-C Charging Cable
The USB Cable that connects the USB charger to the USB hub for charging the iPad when connected to the USB hub.
Where to Purchase:
Connections

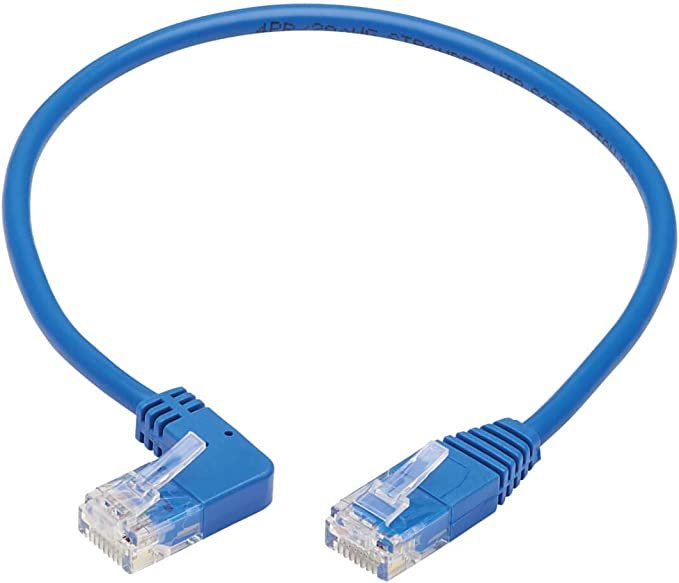

Guac Brain Ethernet Cable
The Ethernet cable that connects the Guac Brain to the USB hub for printer and LED control.
Where to Purchase:
Connections

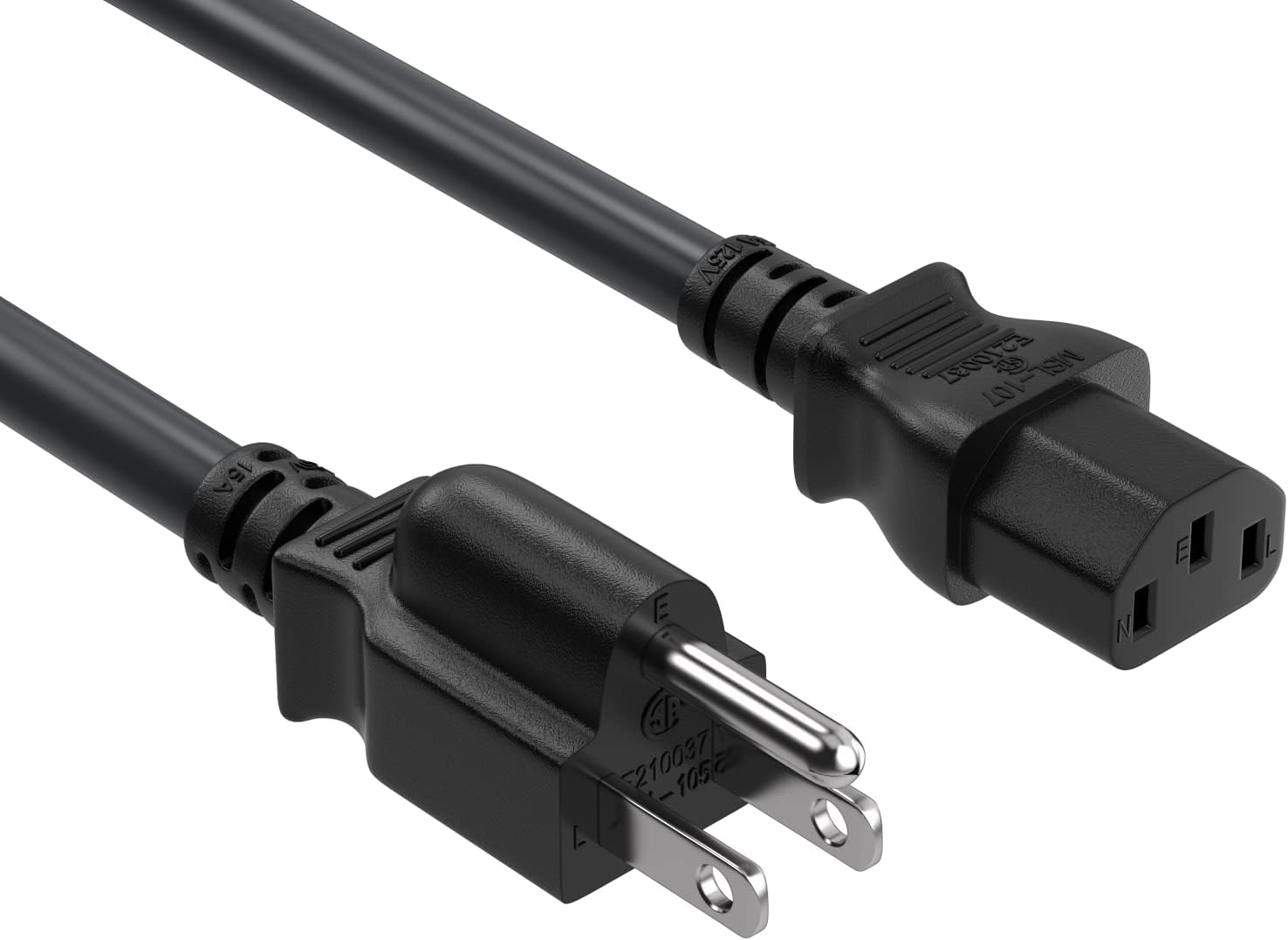

Guac Power Cord
The cord that connects Guac to a power outlet.
Where to Purchase:
Connections

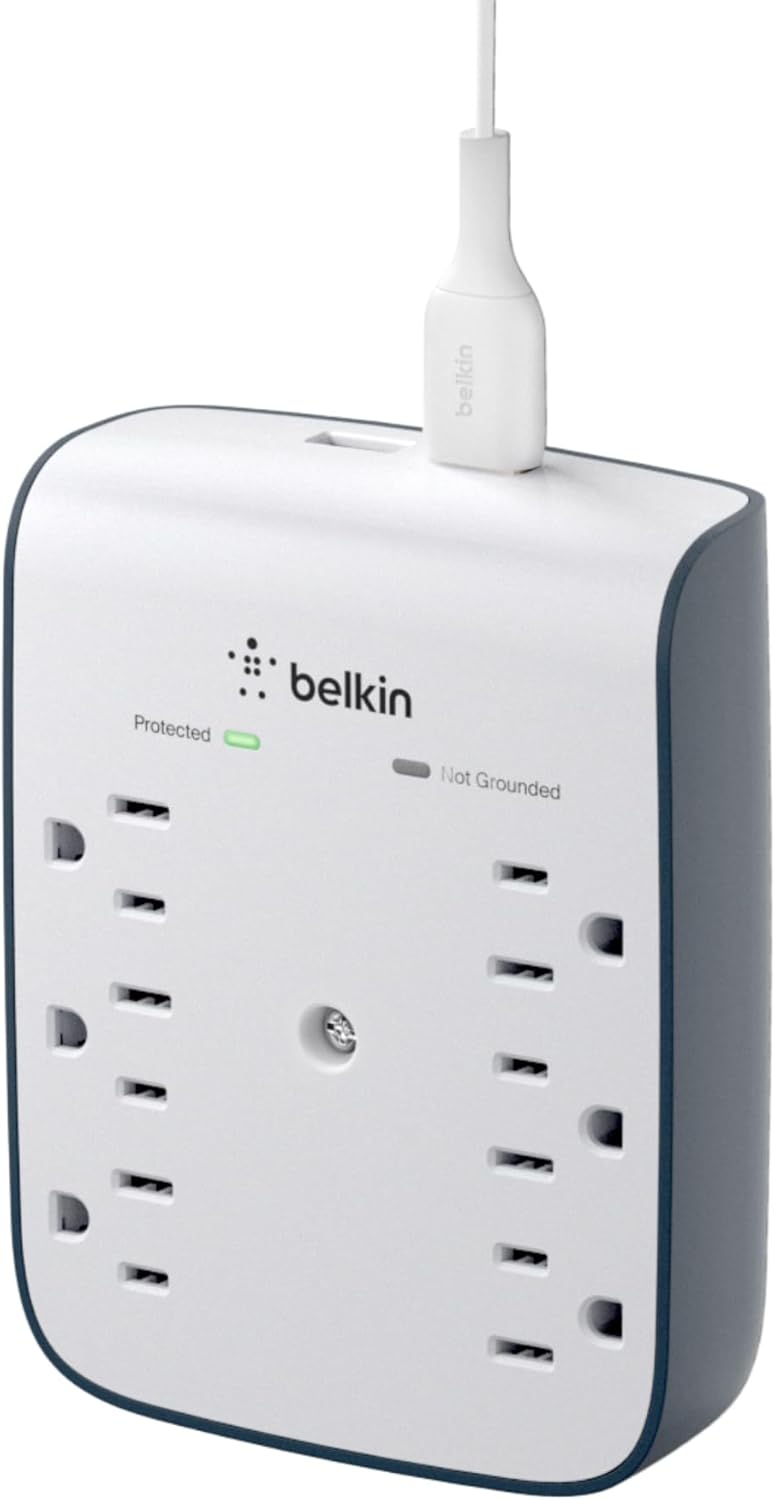

Guac Belkin Surge Protector
Replacement Belkin surge protector used inside Guac to keep Guac and its electrical components safe from power surges.
Where to Purchase:
Connections

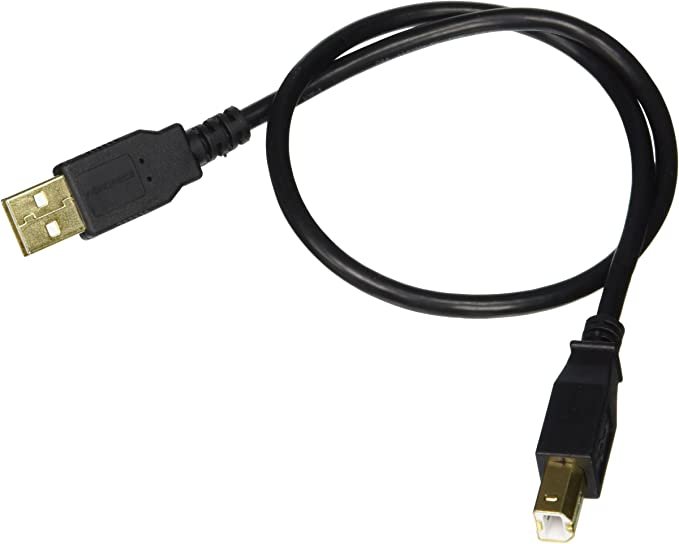

Printer USB Cable
Description:
USB cable that connects Guac to the Chips printer.
Where to Purchase:
Connections
Guac Camera USB Cable
Canon M50 II
The USB cable that connects the Canon M50 II to the Guac.
Where to Purchase:
Canon R100
The USB cable that connects the R100 to the Guac.
Where to Purchase:
Connections
Guac Flash Power Cable
The replacement 2-foot power cable to connect the Godox MS300 or MS300-V to Guac's Belkin Surge Protector.
Where to Purchase:
Connections

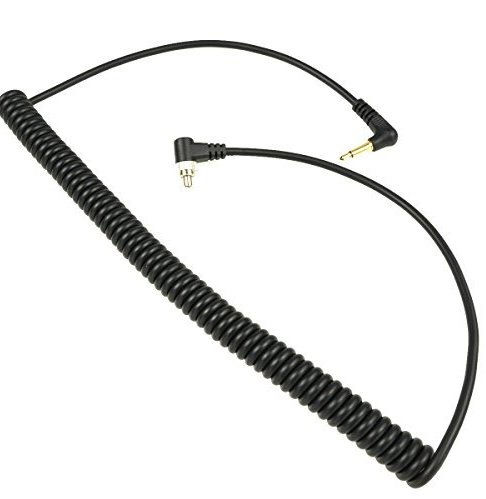

Guac Flash Sync Cable
The 3.5mm male to male Flash PC Sync to connect the flash hotshoe on the camera to the Godox MS300 or MS300-V.
Where to Purchase:
Connections

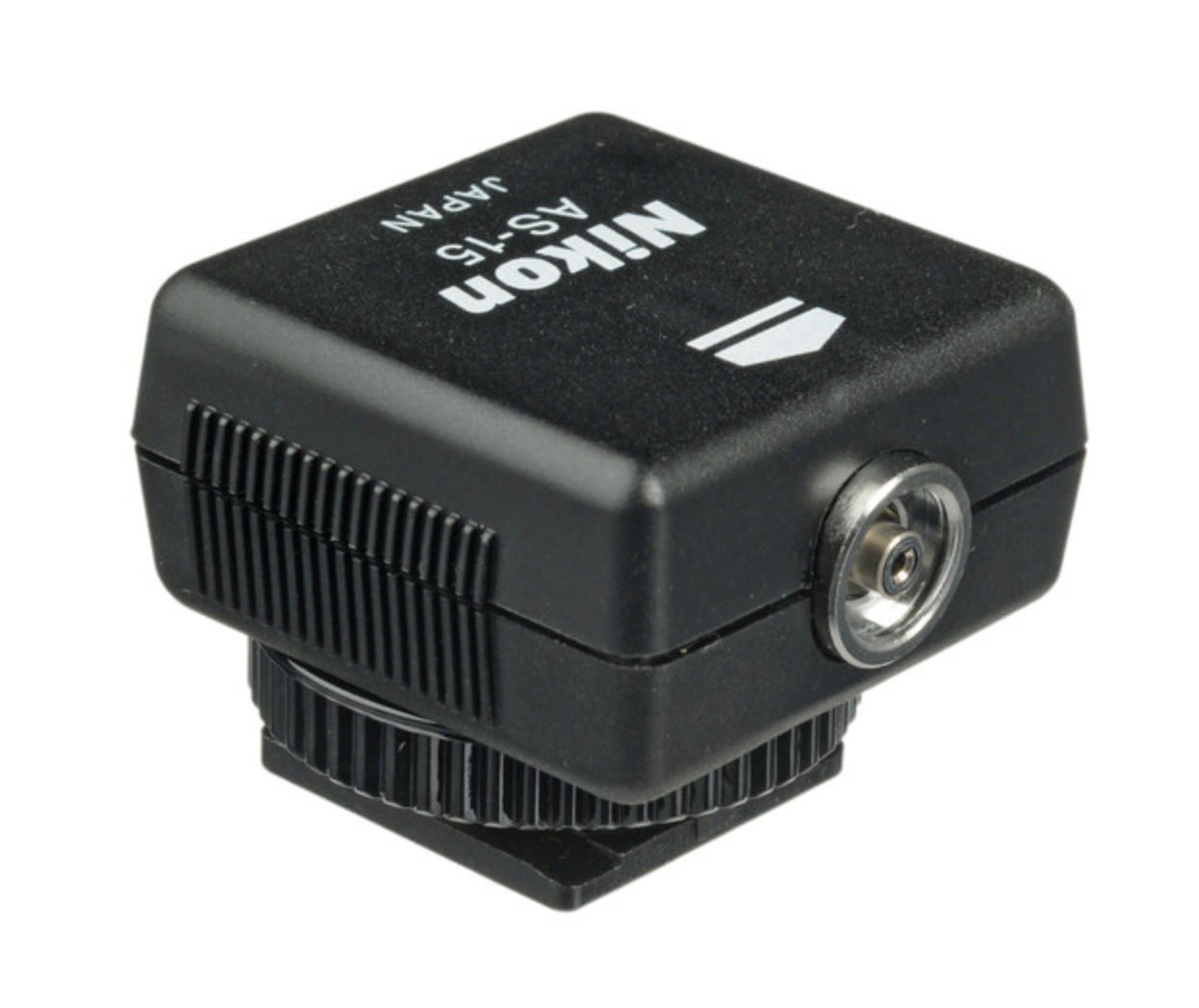

AS-15 Flash Adapter
The Nikon AS-15 flash adapter connects the Flash Hotshoe on the camera to the Godox MS300 or MS300-V via the flash sync cable.
Where to Purchase:
Guac Head

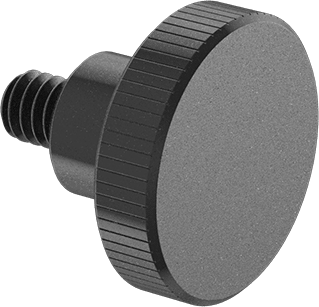

Camera Thumb Screw
The screw that secures the camera to the Guac Head using the tripod thread at the base of your Canon M50 II or R100.
Where to Purchase:
Guac Head

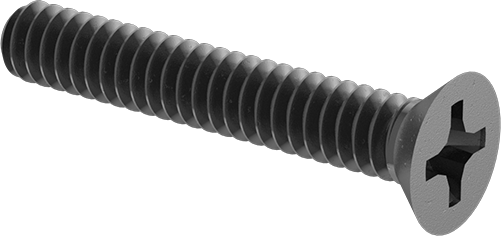

Faceplate Screws
The screws that fasten the Faceplate to the Guac Head to secure the iPad.
Where to Purchase:
Guac Poles

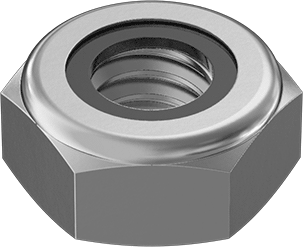

Pole Nut Rod
The nuts found underneath the knobs found within the Guac Head.
Where to Purchase:
Atlas Stand

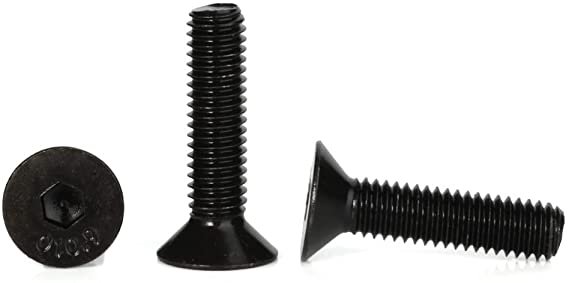

Bottom Pole Screw
These screws attach to the bottom of the Atlas Stand under the feet.
Details
M8-1.25 x 45mm flat head socket cap screws countersunk bolt
Where To Purchase:
IMPORTANT: Any M8-1.25 screw with a length between 30mm and 50mm is compatible with the bottom pole of the Atlas Stand.
Miscellaneous

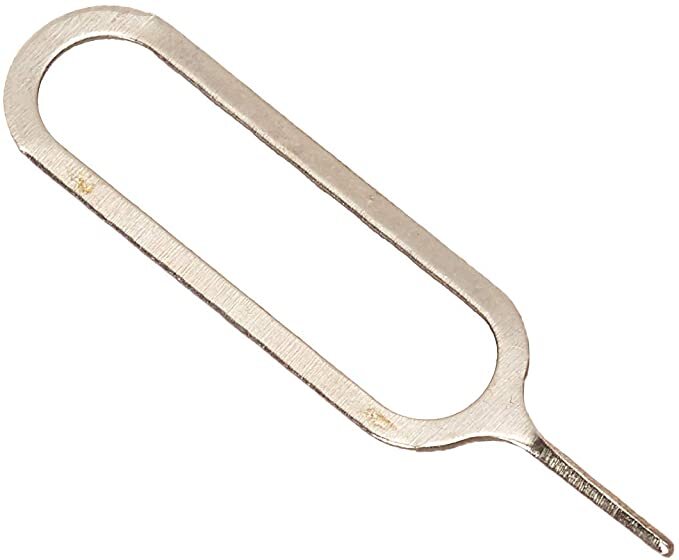

Top Button/Home Button Tool
The tool used to click the sleep/wake or Home button to activate Guided Access
Where to Purchase:
