Before You Start

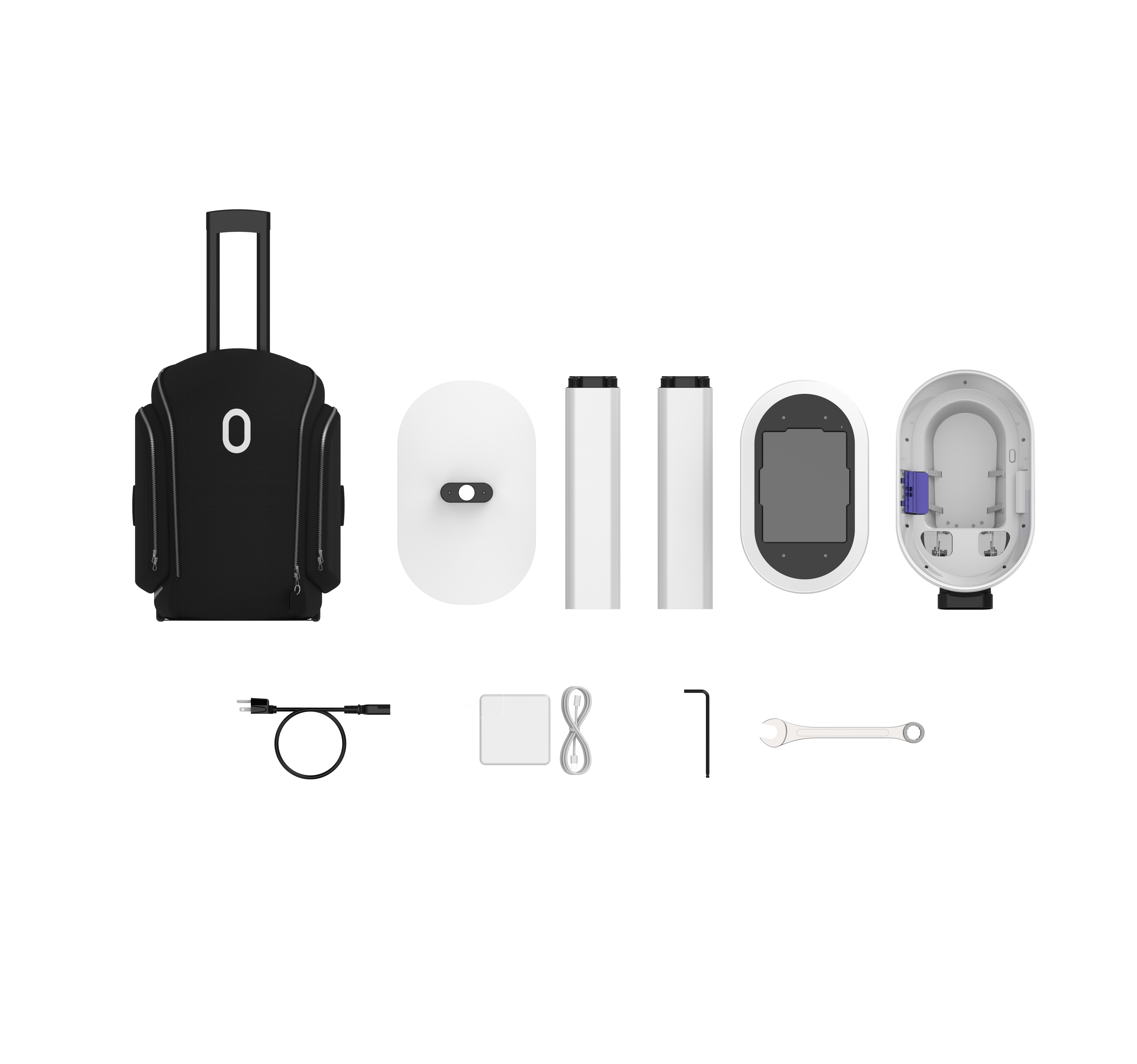

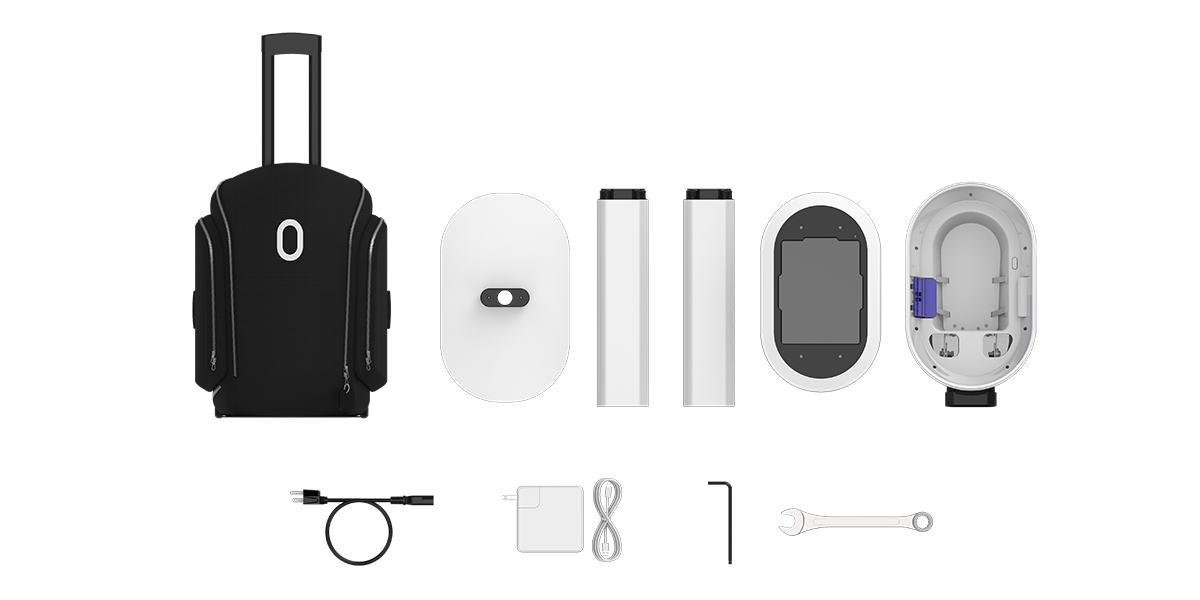

Before assembling your Salsa 2 Photo Booth, make sure that you have:

• Updated to the latest version of iPadOS
• Updated to the latest version of the Fiesta iOS App
• Logged into an active Fiesta account

Don't have a Fiesta account yet? Learn how to create a Fiesta account here.

Back to top

Step One
Assemble Booth

1. Remove the Salsa 2 Head from the front of the case and place it on the fabric flap of the carrying case
2. Remove the Salsa 2 Baseplate from the case
3. Remove the power cables and booth accessories from the case
4. Remove the first Salsa 2 Pole from the case
5. Run the Salsa 2 Power Cable through the bottom of the Baseplate
6. Run the Salsa 2 Power Cable through the first Salsa 2 Pole Cable Conduit
7. Fasten the first Salsa 2 Pole to the Baseplate
8. Remove the second Salsa 2 Pole from the case
9. Run the Salsa 2 Power Cable through the second Salsa 2 Pole Cable Conduit
10. Fasten the second Pole to the first Pole and the Baseplate
11. Run the remainder of the Salsa 2 Power Cable through the rubber grommet at the base of the Salsa 2 Neck
12. Open the Salsa 2 Head using the Roamer Release Lever
13. Connect the Power Cable to the USB-C input on the back of the Salsa 2 Roamer
14. Connect the Salsa 2 Power Cable to the Power Supply
15. Connect the Salsa 2 Power Supply to the AC Extension Cable
16. Plug the AC Extension Cable into the wall
17. Close the Salsa 2 Head

Note: Salsa 2 should be set up in a space that measures roughly 10 feet wide by 5 feet deep. Ideally, for the best capture exposure, the booth should be assembled 3 feet from the backdrop and have at least 2 feet behind it to allow for guest traffic.

Back to top

Step Two

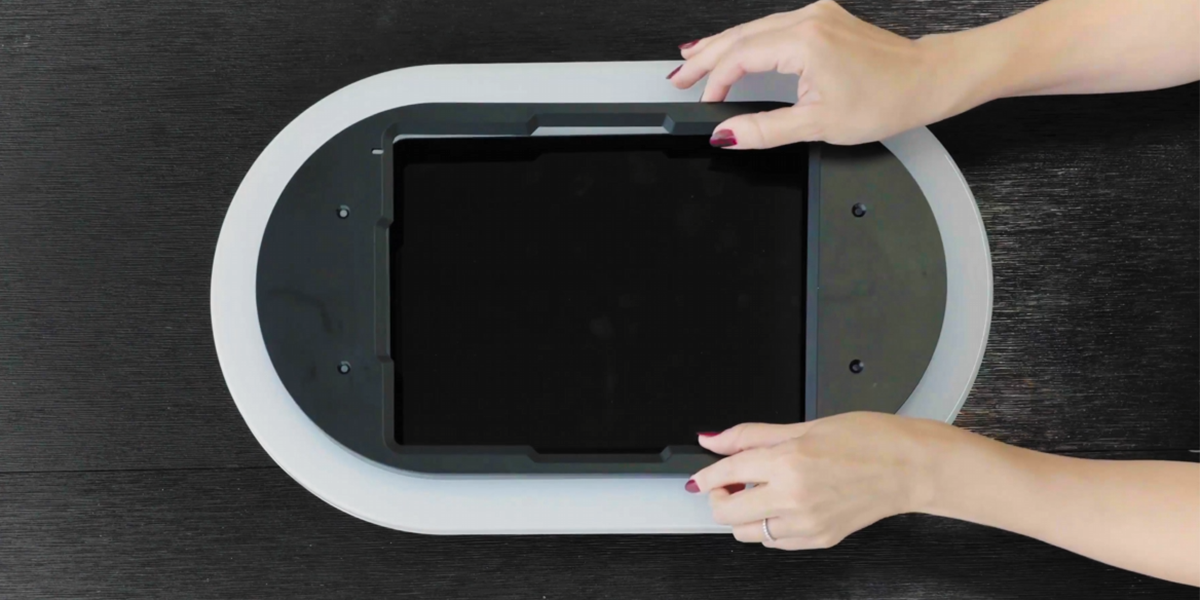

Install iPad

1. Remove the Allen wrench from the Salsa 2 Case
2. Unscrew the four screws holding the Faceplate in place
3. Remove the Salsa 2 Faceplate
4. Plug the USB-C cable into the iPad
5. Insert the iPad into the Salsa 2 Front Plate
6. Reattach the Faceplate
7. Screw the four screws back in to lock the Faceplate into place

Note: Unlike the Salsa 1, it is okay to run the Salsa 2 without an iPad or cardboard insert installed in the Faceplate area.

Back to top

Alternate Method
Roamer Assembly

Are you working with the Salsa 2 Booth, but want to assemble it differently? Check out this alternative assembly method:

• Roamer Assembly

Back to top

Next Steps

After you have assembled your Salsa 2 Photo Booth, check out the Fiesta Software links to get ready for your first events here.
