Salsa 1 Power
- Salsa 1 DC Extension Cable
- Salsa 1 Power Supply
- Salsa 1 AC Power Cable
- Salsa 1 iPad Charging Cable (USB-C)
Salsa 1 Head
- Salsa 1 Faceplate Screws
- Salsa 1 Tilt Lever
- Salsa 1 Tilt Lever Nut
- Salsa 1 Jack Port Retention Nut
- Salsa 1 Hinge Knob
Salsa 1 Poles
Salsa 1 Baseplate
Atlas Stand
Miscellaneous
Salsa 1 Power

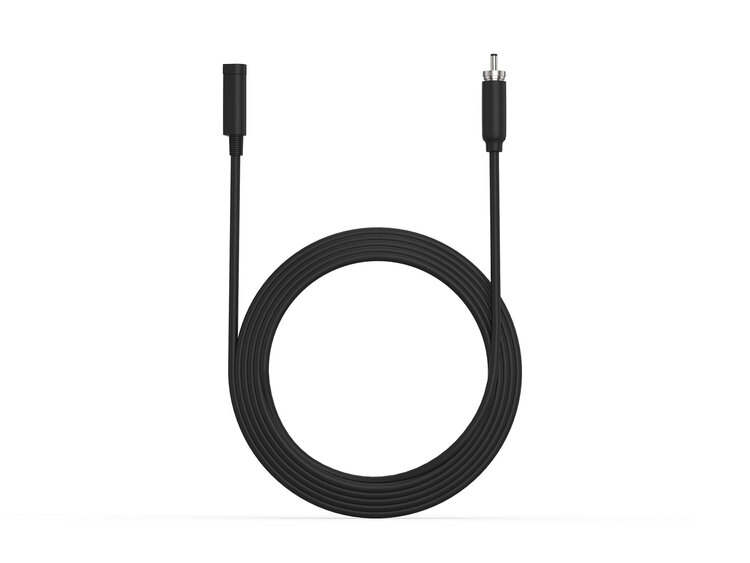

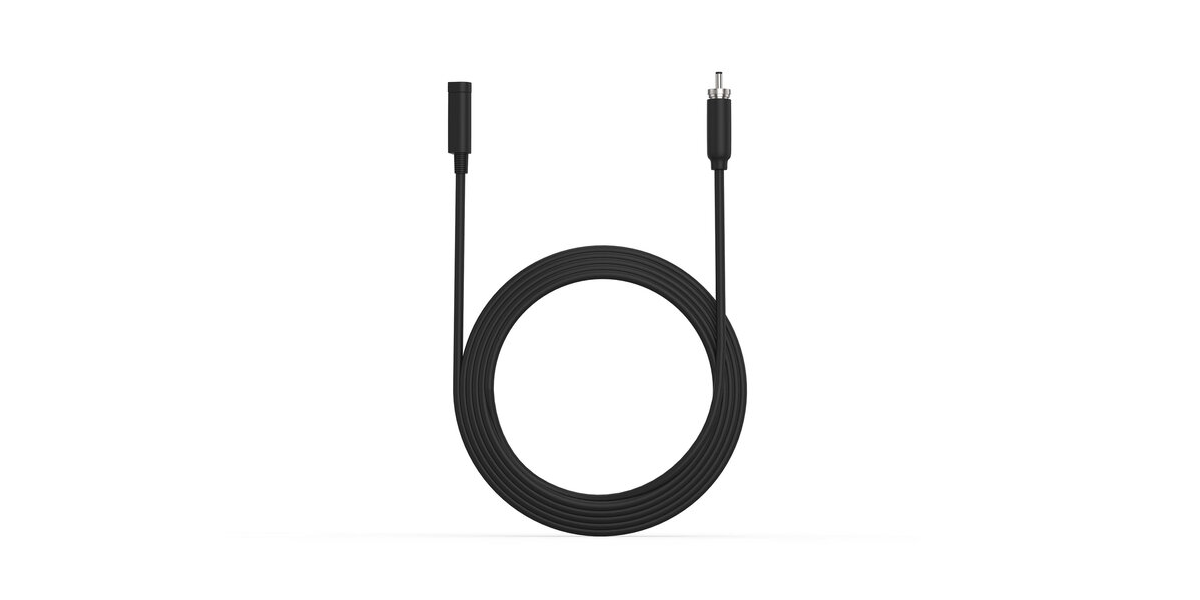

Salsa 1 DC Extension Cable
The cable that connects to the bottom of the Salsa 1 Head and the Salsa 1 Power Supply. It delivers power directly to the Salsa 1 Head.
Where To Purchase:
Salsa 1 Power

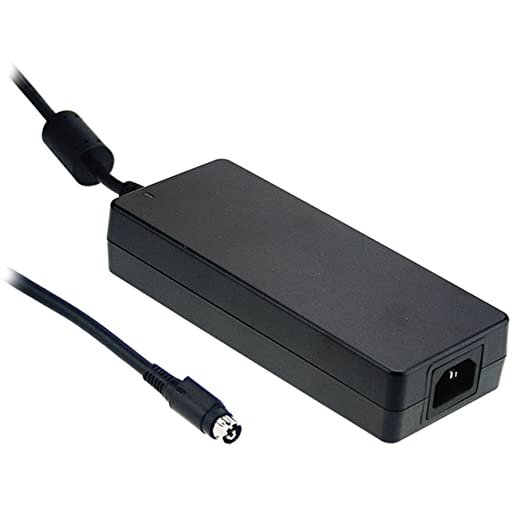

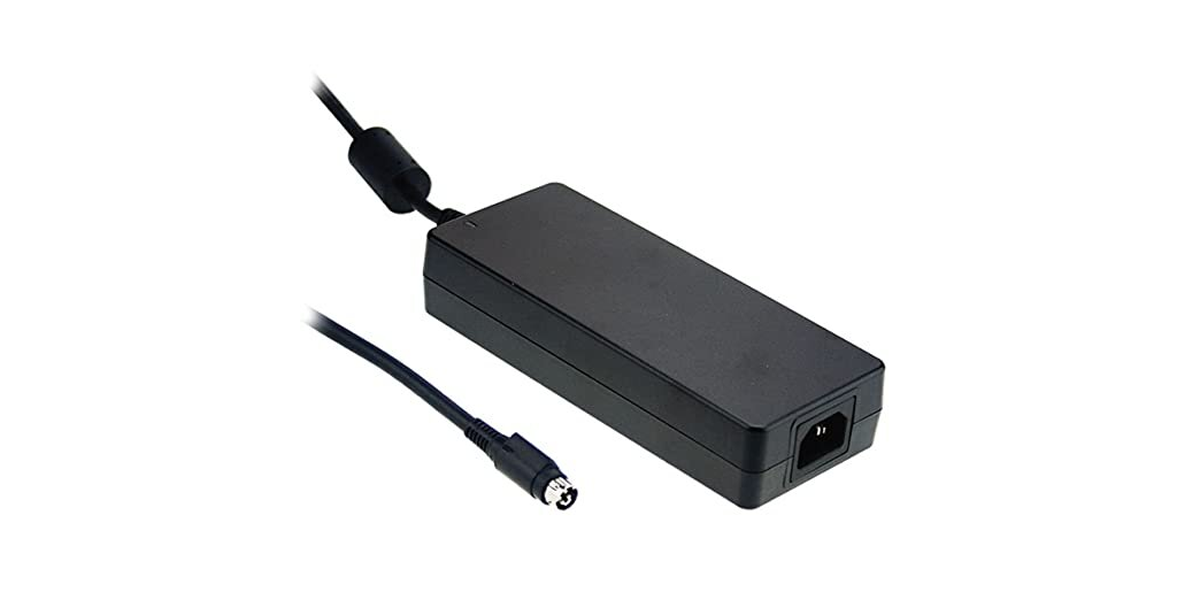

Salsa 1 Power Supply
The device that connects the Salsa 1 DC Extension Cable to the Salsa 1 AC Power Cable. It converts incoming power from the wall outlet or battery into usable energy for the Salsa 1 Booth.
Where To Purchase:
Salsa 1 Power

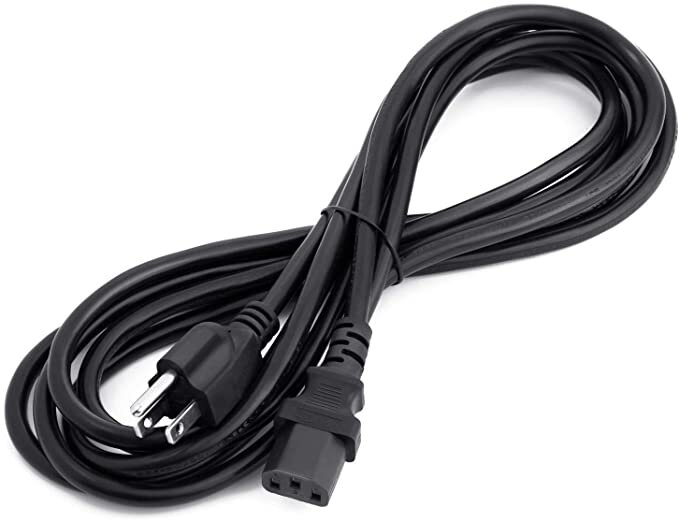

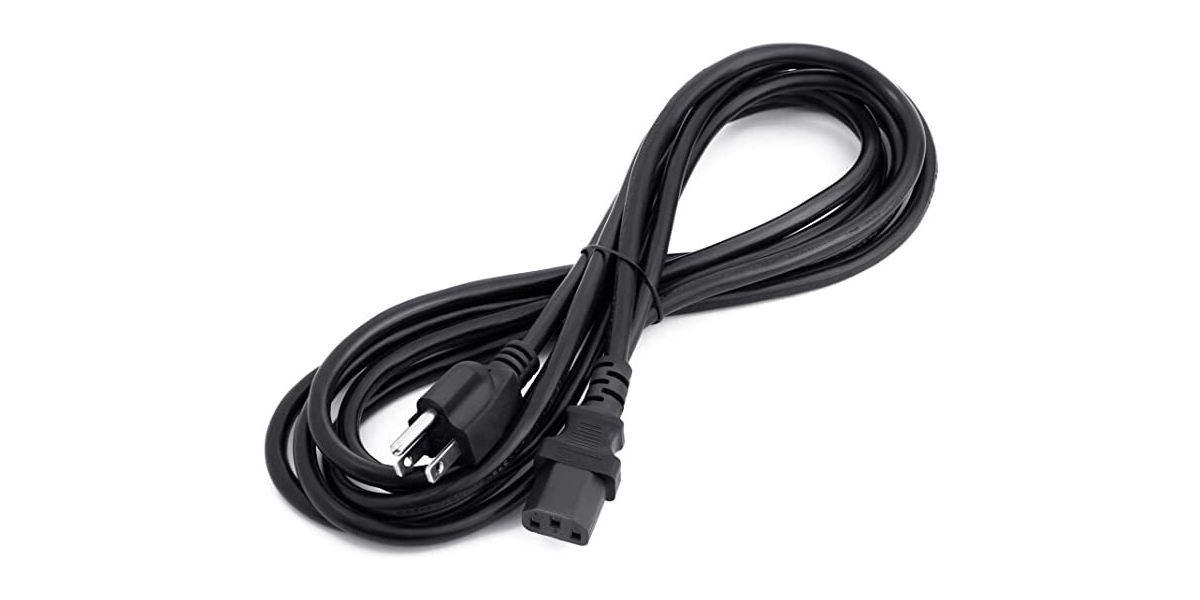

Salsa 1 AC Power Cable
This cable connects the the Salsa 1 Power Supply to a power source - such as a wall outlet or battery, to complete the booth's power connection.
Where To Purchase:
Salsa 1 Power

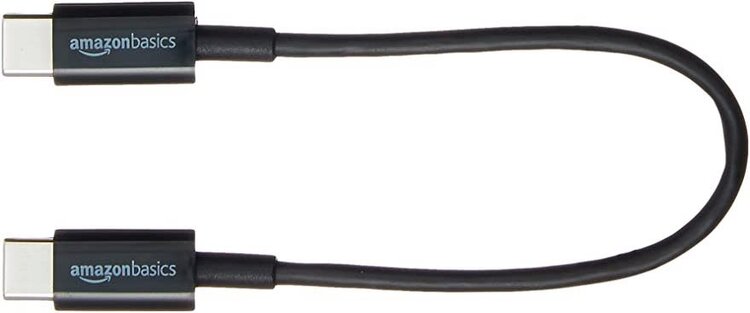

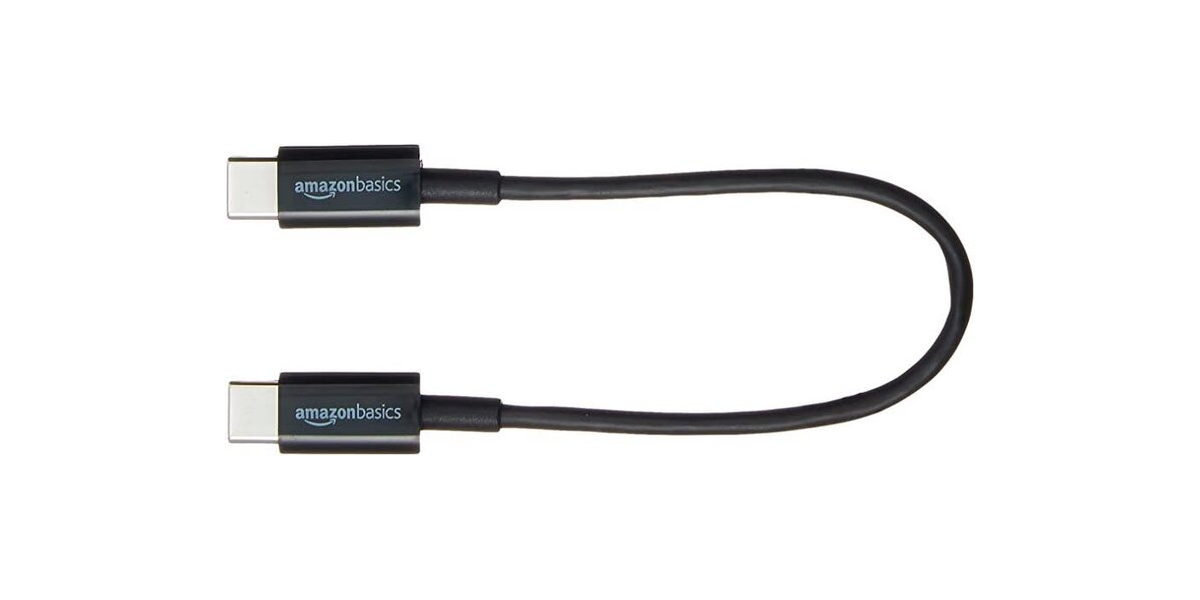

Salsa 1 iPad Charging Cable (USB-C)
This cable is used to charge the iPad while it is mounted inside the Salsa 1 Head.
Where To Purchase:
Salsa 1 Head

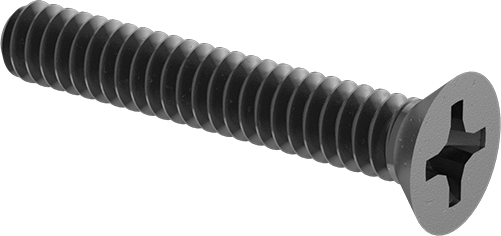

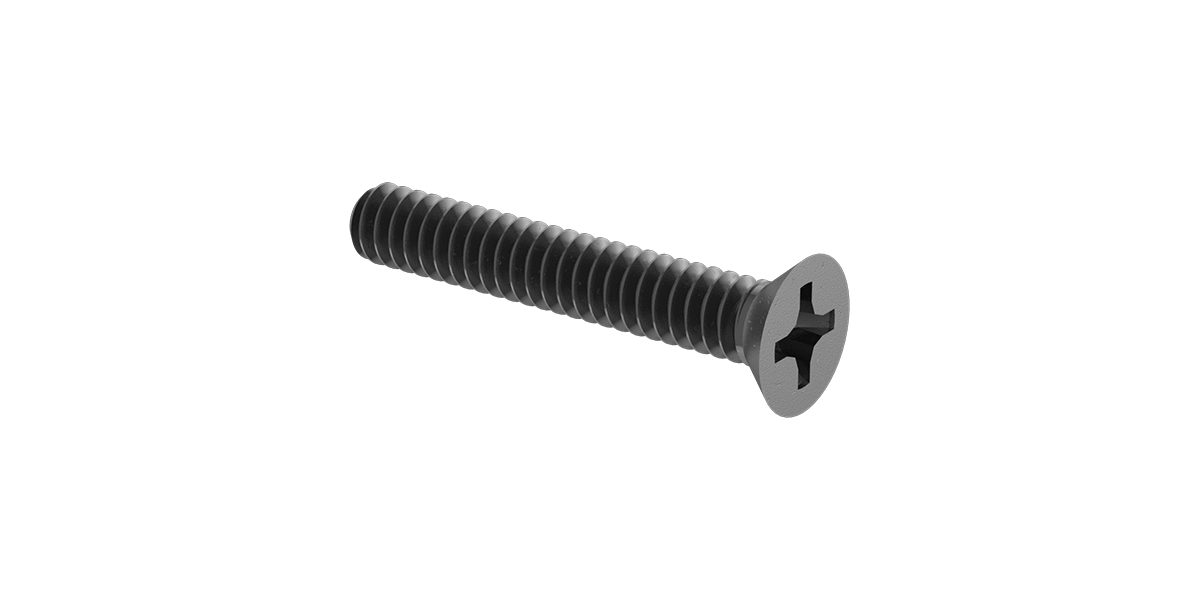

Salsa 1 Faceplate Screws
Secures the Salsa 1 Faceplate to the front of the Salsa 1 Head.
Details:
Black-Oxide 18-8 Stainless Steel Phillips Flat Head Screws
Thread size #6-32
Original screw length: 7/8"
Where To Purchase:
- McMaster (original screw length, 7/8")
- Amazon (slightly shorter than the original screw length, 3/4" - still compatible with the Salsa 1 Faceplate)
Salsa 1 Head

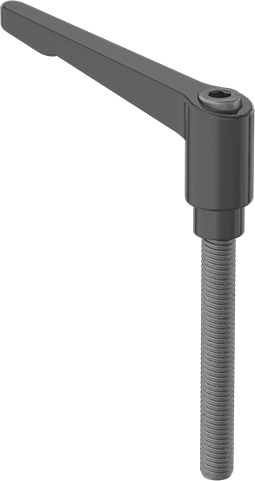

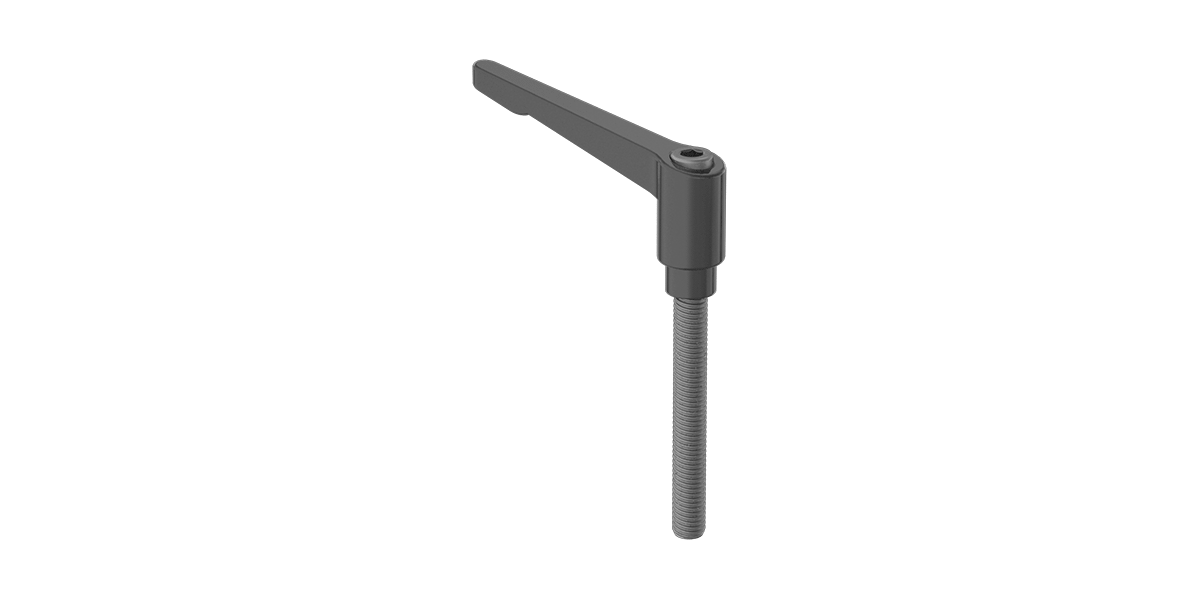

Salsa 1 Tilt Lever
The device used to tighten or loosen the hinge, allowing you to adjust the angle of the Salsa 1 Head.
Where To Purchase:
Salsa 1 Head

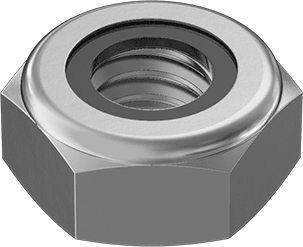

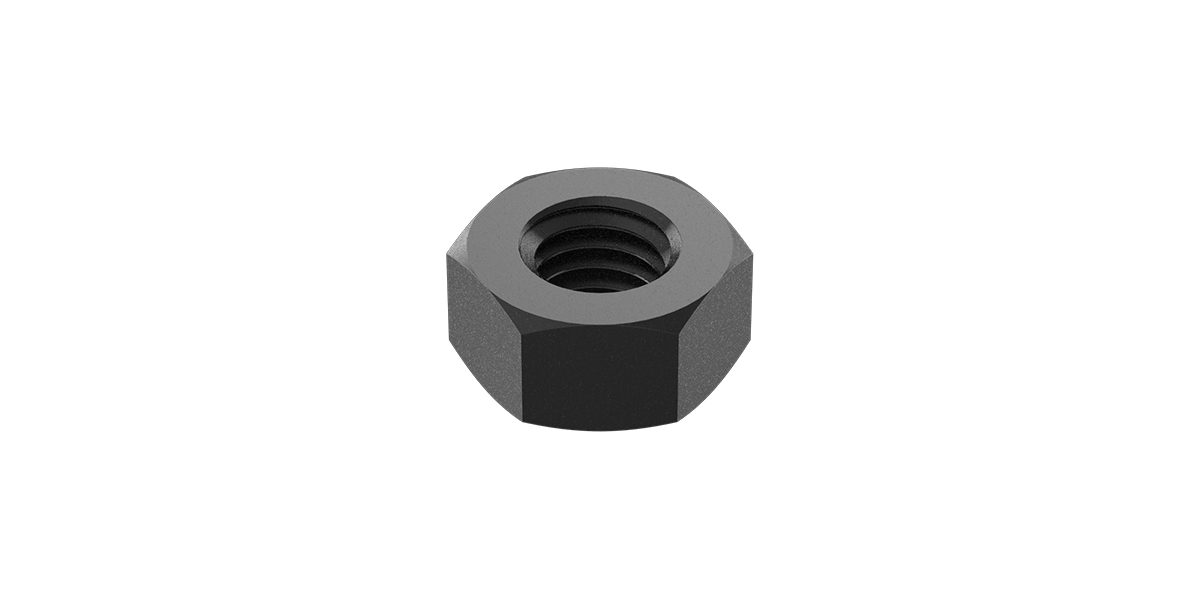

Salsa 1 Tilt Lever Nut
This nut secures the Salsa 1 Tilt Lever to the Salsa 1 Hinge, keeping it firmly in place.
Where To Purchase:
Salsa 1 Head

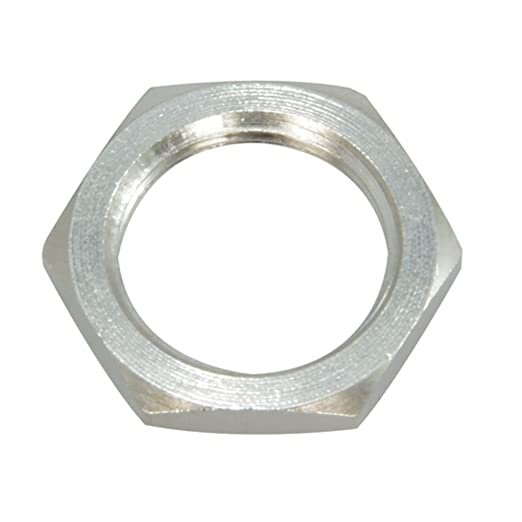

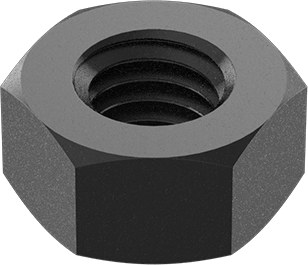

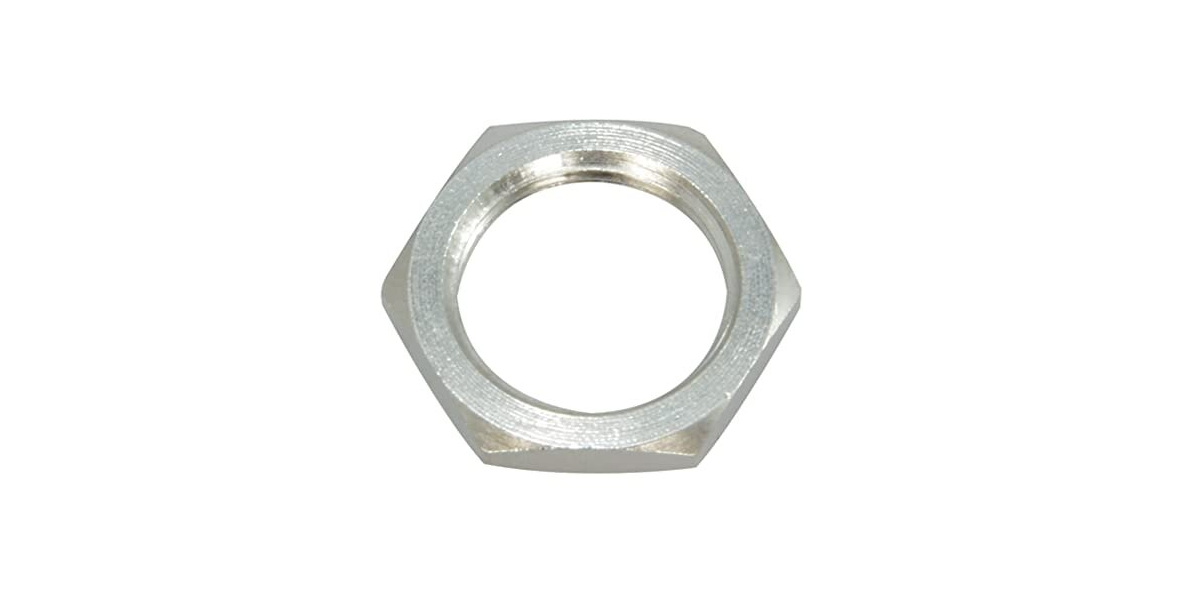

Salsa 1 Jack Port Retention Nut
This nut secures the Salsa 1 Jack Port on the bottom of the Salsa 1 Head, where the Salsa 1 DC Extension Cable connects. It keeps the power connection port firmly in place.
Where To Purchase:
Salsa 1 Head

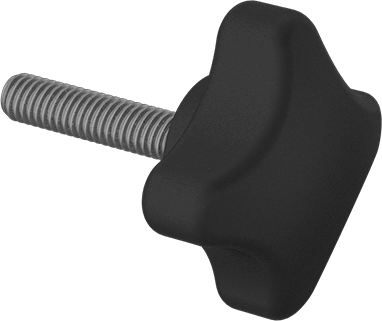

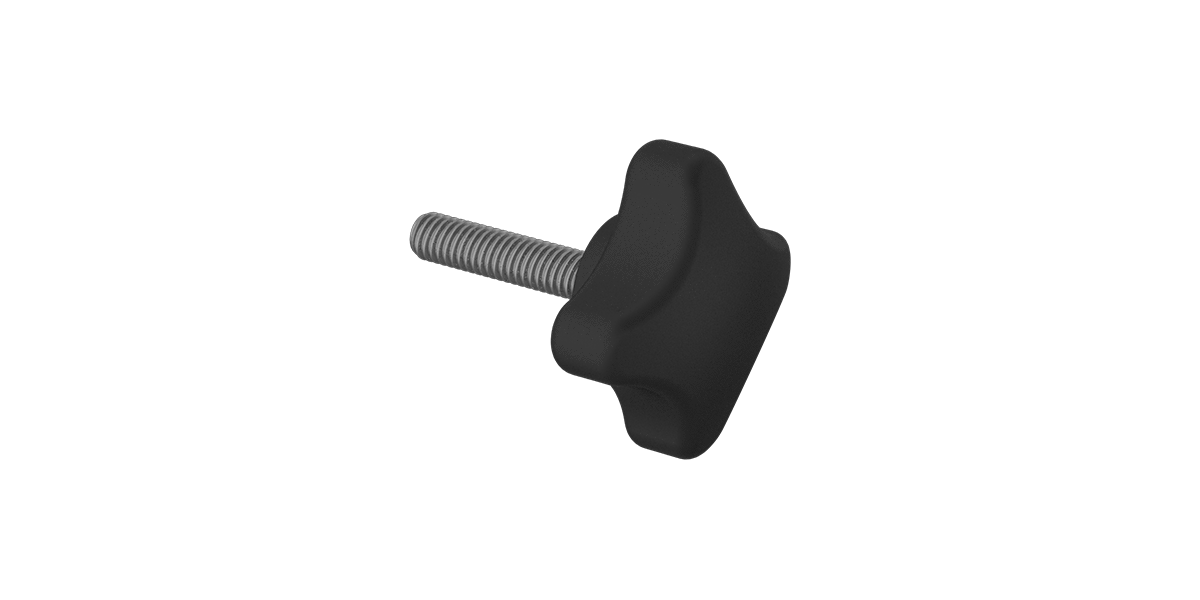

Salsa 1 Hinge Knob
Knobs located on both sides of the Salsa 1 Hinge, used to secure and tighten the Salsa 1 Head to the Salsa 1 Poles.
Where To Purchase:
- McMaster
- Amazon (Similar to the original supplier, but of a lower quality. Will function identically)
Salsa 1 Poles

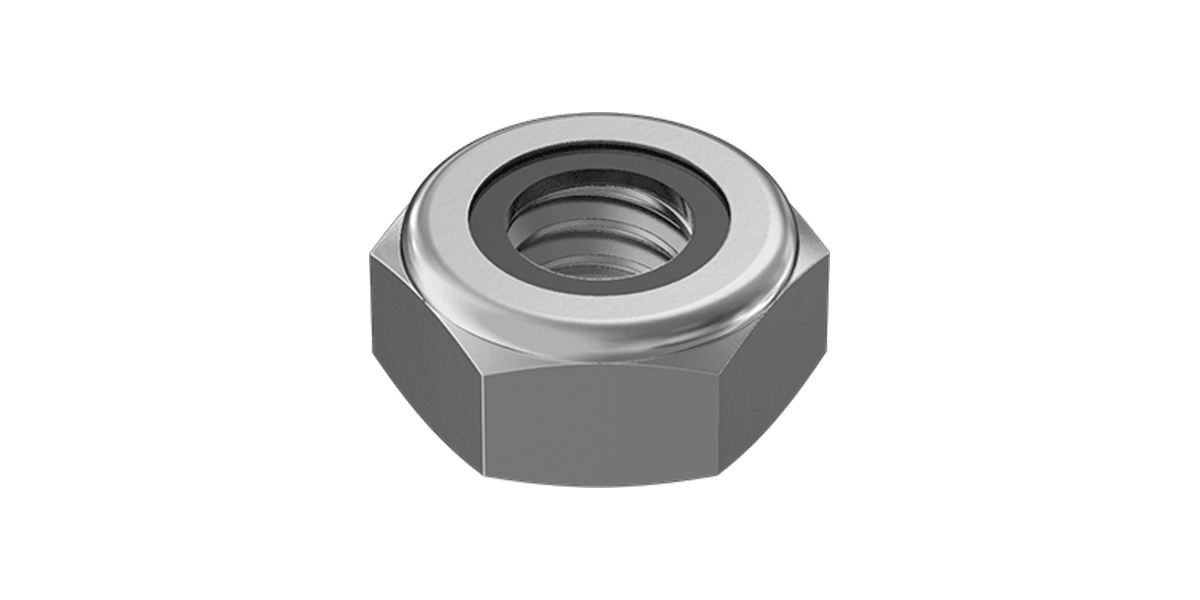

Salsa 1 Hinge Knob And Pole Rod Retention Nut
This nut is located within the Salsa 1 Poles and beneath the Salsa 1 Hinge Knobs. It tightens the internal rods, helping to secure the poles to the baseplate, to each other, and to the Salsa 1 Hinge.
Where To Purchase:

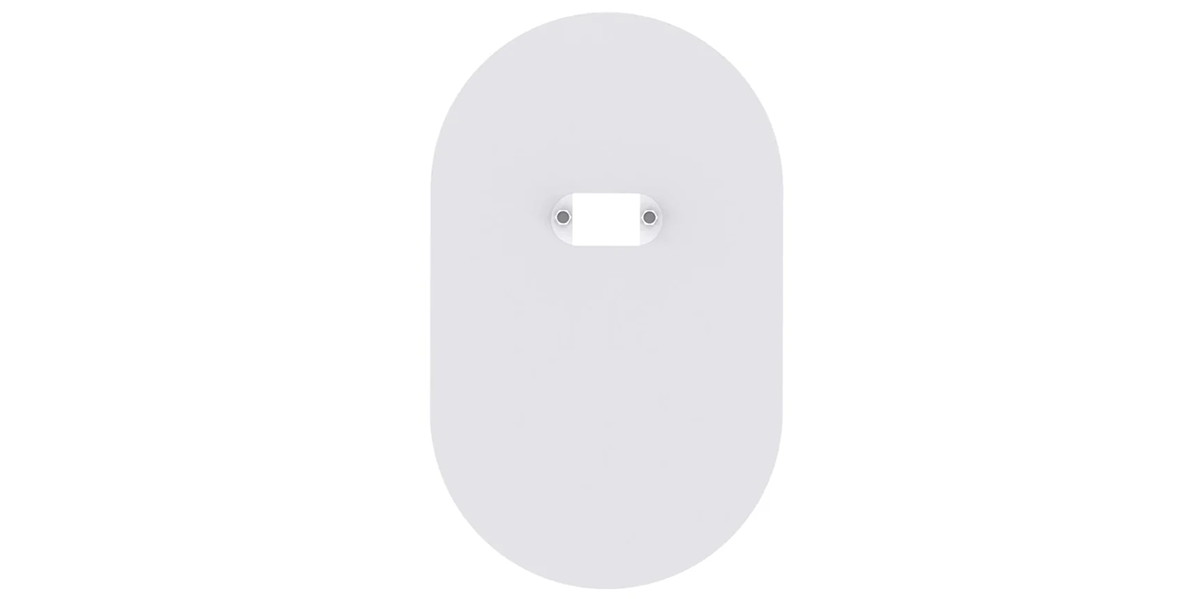

Salsa 1 Baseplate

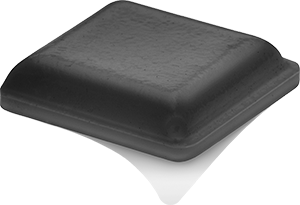

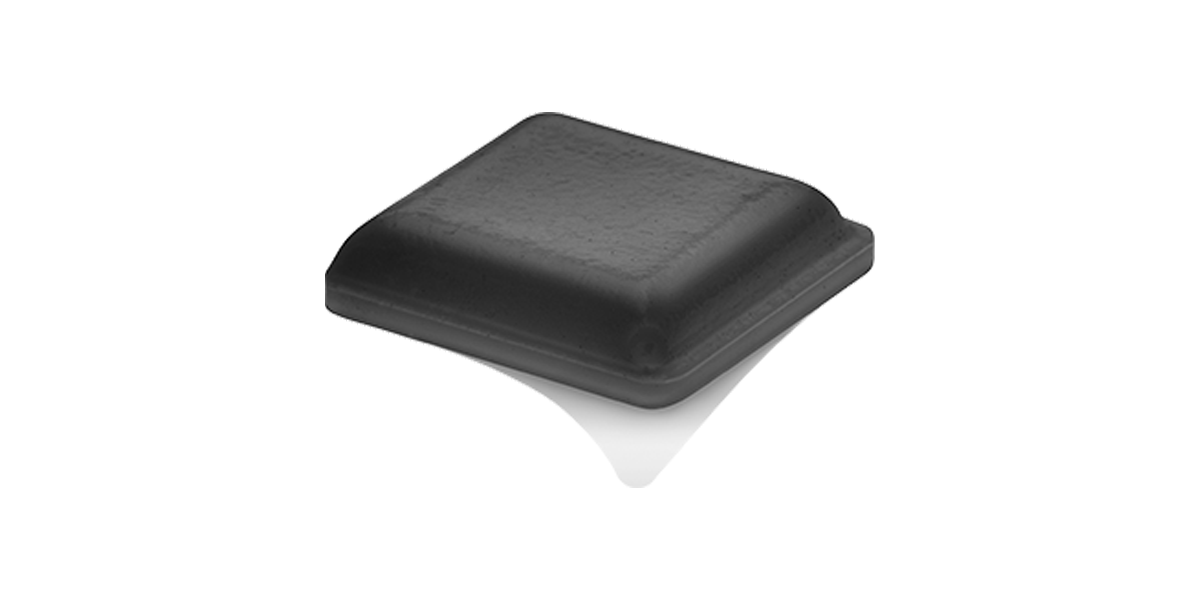

Salsa 1 Baseplate Feet
Set of adhesive feet measuring 3/4" wide by 3/4" long and 3/8" high, designed to attach to the bottom of the Salsa 1 Baseplate for added grip and stability on various surfaces.
Where To Purchase:
Salsa 1 Baseplate

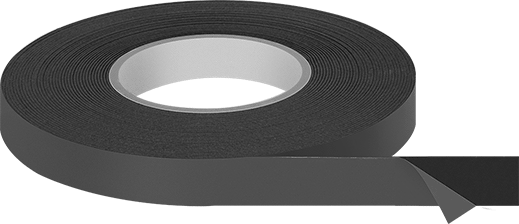

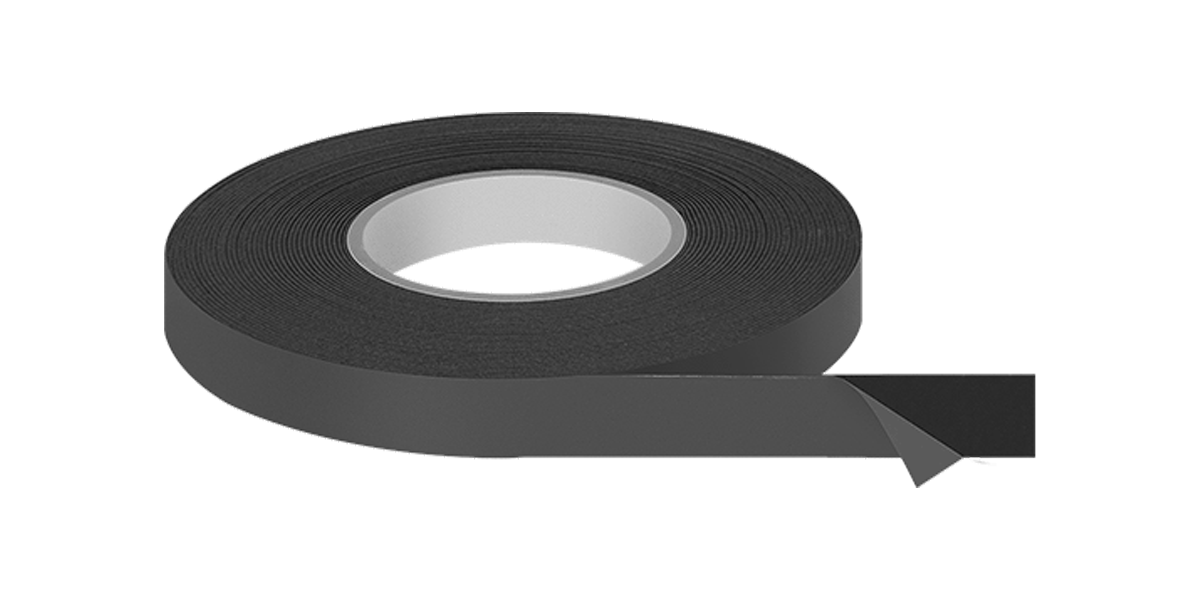

Salsa 1 Baseplate Feet Adhesive
This adhesive tape is used to attach the Salsa 1 Baseplate Feet to the Salsa 1 Baseplate in cases where the adhesive has worn out.
Where To Purchase:
IMPORTANT: The adhesive is designed to be used with the Salsa 1 Baseplate Feet and will require trimming, as it does not come pre-cut. For best results, clean the Salsa 1 Baseplate surface thoroughly with a mild solvent before applying.
Atlas Stand

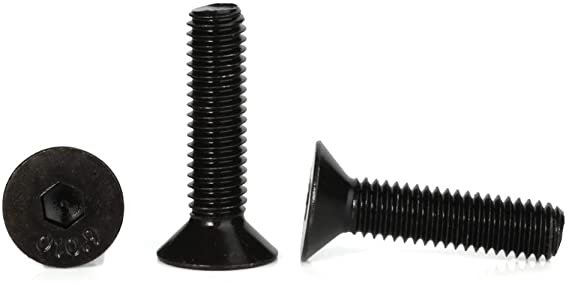

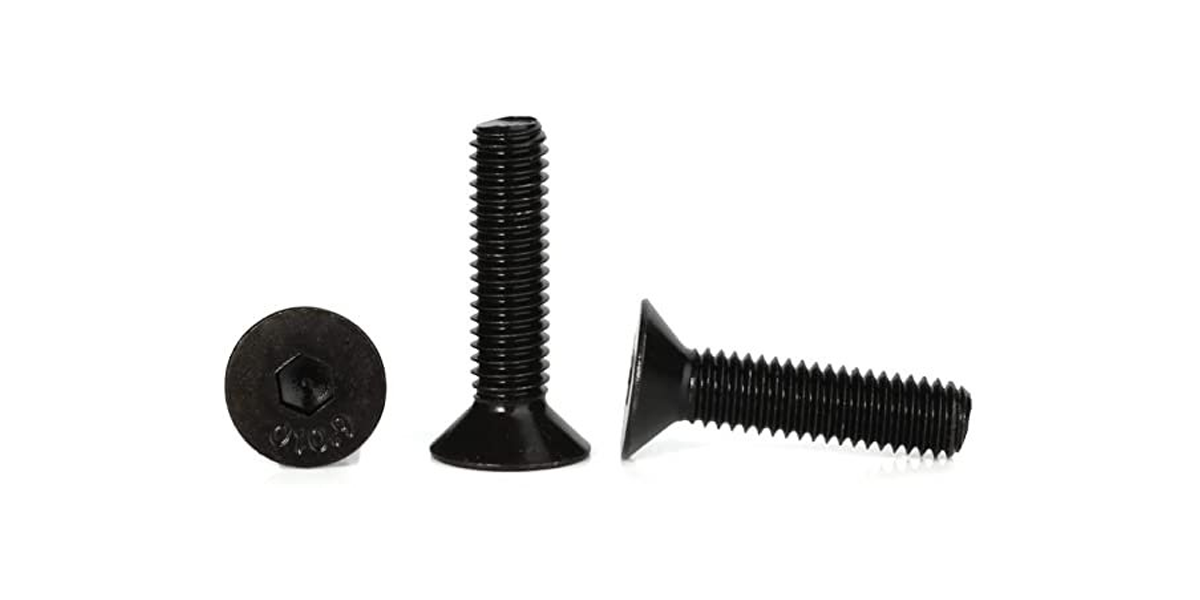

Atlas Stand Bottom Pole Screw
These screws attach to the bottom of the Atlas Stand under the feet.
Details
M8-1.25 x 45mm flat head socket cap screws countersunk bolt
Where To Purchase:
IMPORTANT: Any M8-1.25 screw with a length between 30mm and 50mm is compatible with the bottom pole of the Atlas Stand.
Miscellaneous

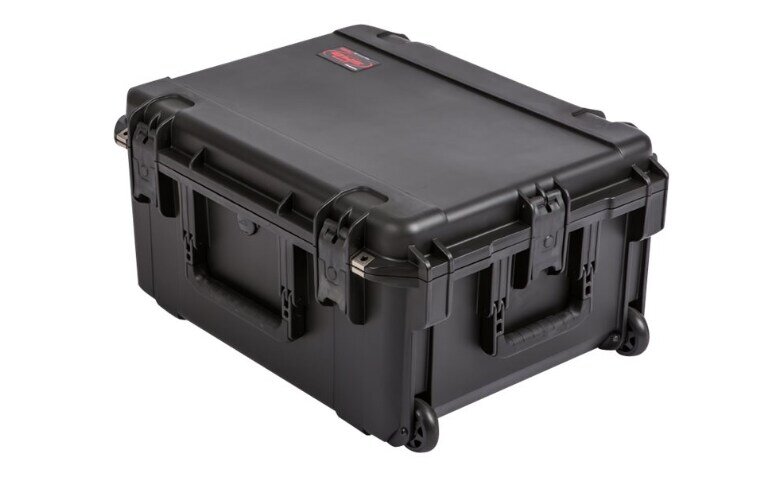

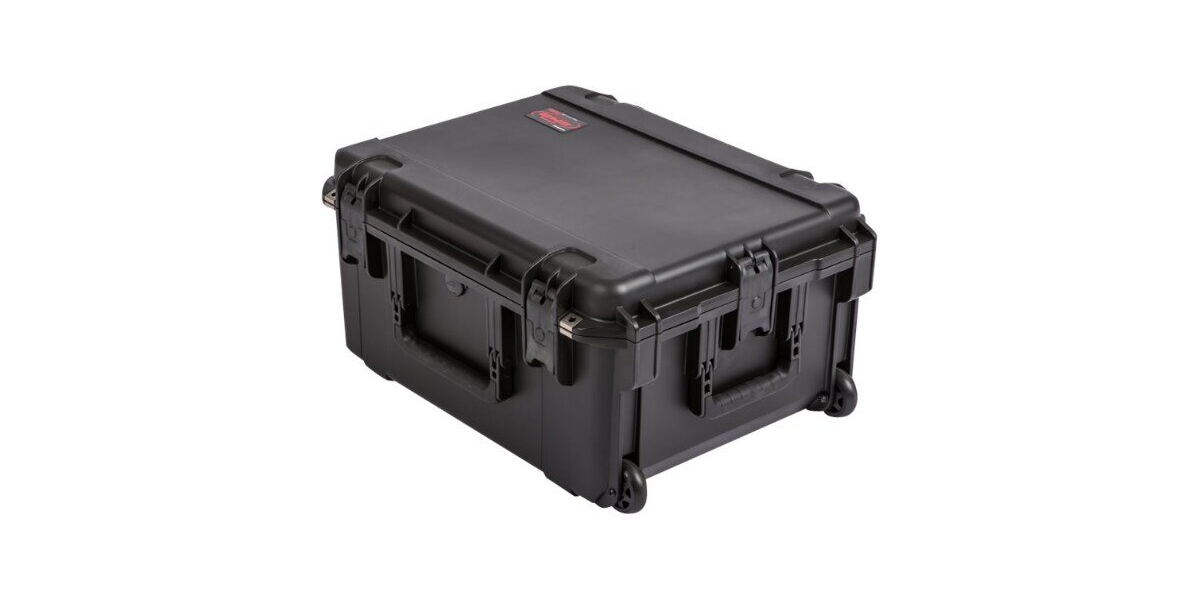

Salsa 1 SKB Carrying Case
This carrying case is a hard shell case designed for transporting the Salsa 1 Booth.
Where To Purchase:
IMPORTANT: The foam inserts included with the original Salsa 1 SKB case are custom-made and proprietary to Photobooth Supply Co.
These custom-made foam inserts are not available for purchase through the Midwest Case Company and are not included if you purchase a new SKB hard shell carrying case directly.
If you need to replace your case, we recommend removing and reusing the original foam from your current Salsa 1 Booth.
If your Salsa 1 carrying case is damaged or needs replacement parts, you can reach out directly to SKB Cases to submit a request.
Miscellaneous

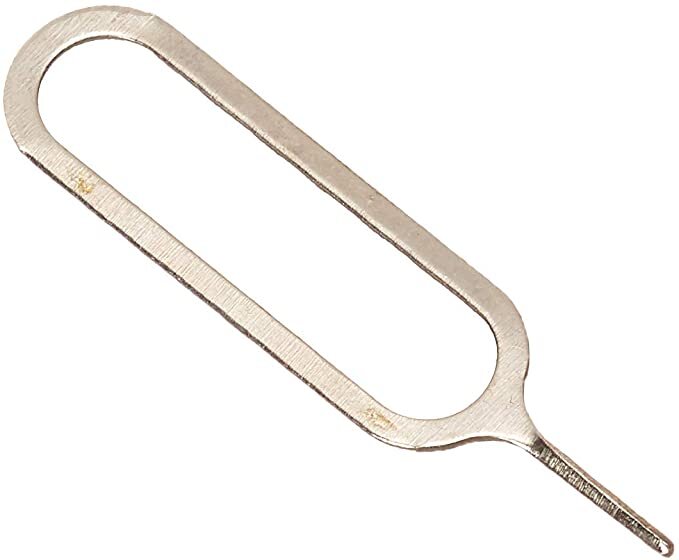

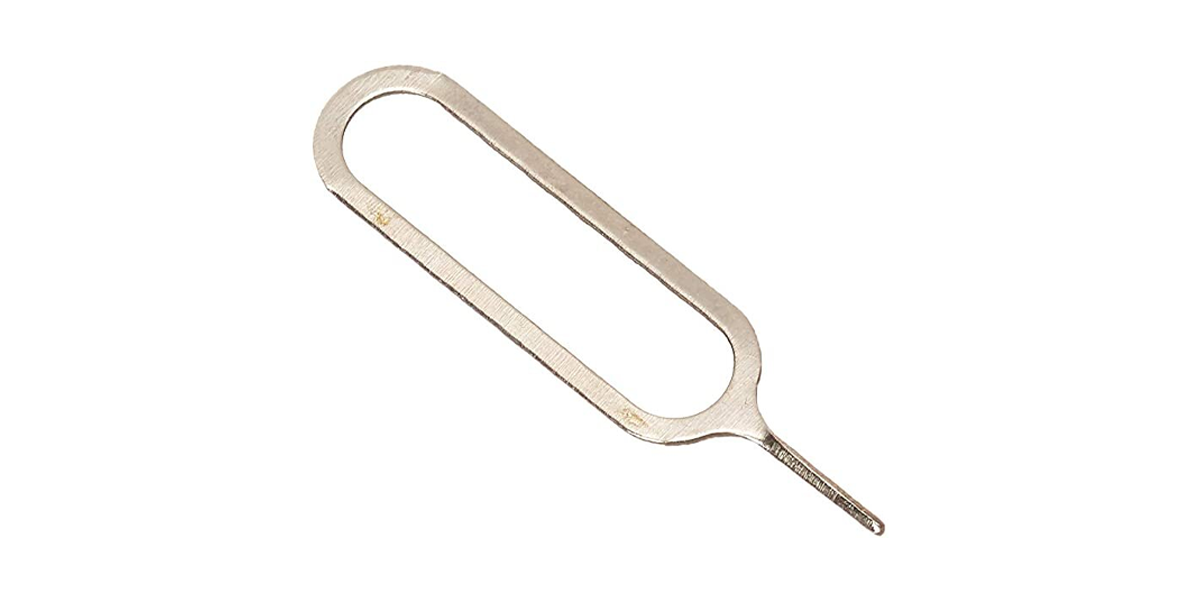

Salsa 1 Top Button And Home Button Tool
This tool is used to press the sleep/wake (top) button or home button through the opening in the Salsa 1 Faceplate to activate or exit Guided Access mode.
Where To Purchase:
