Explainer

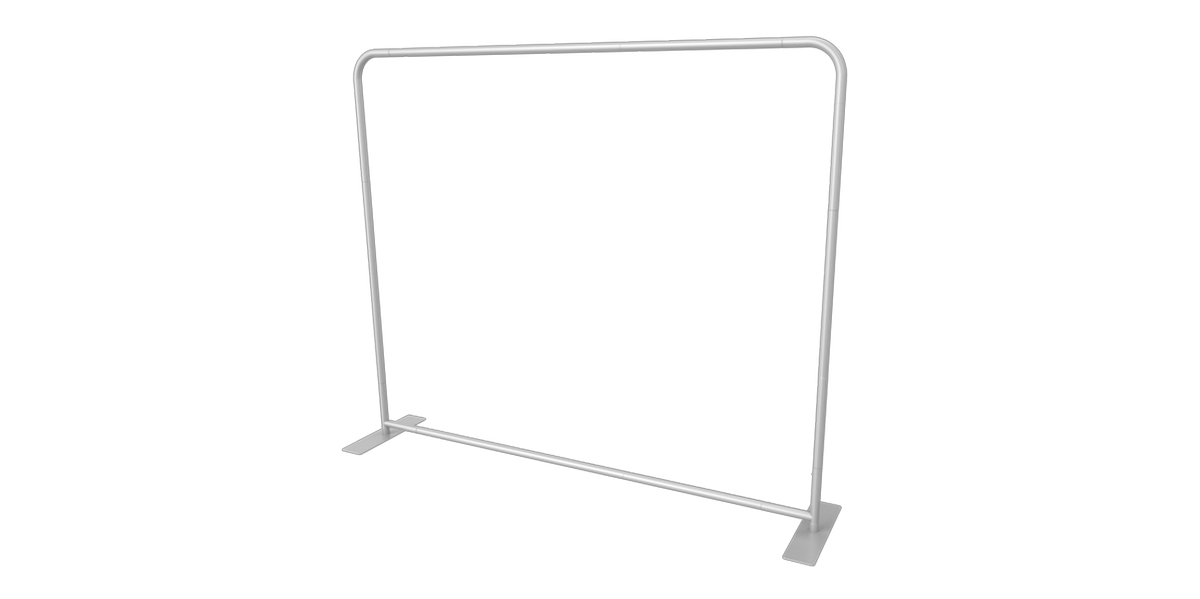

Atlas Stand
The Atlas Stand is Photobooth Supply Co.'s own backdrop stand, and is designed to accommodate virtually any backdrop on the market. Standing 8 feet (96 inches) wide and 7.3 feet (88.25 inches) tall at default, the Atlas Stand comes with two additional 7-inch expansion poles to increase its size to 8 feet wide and 7.9 feet tall.
How To
Assemble The Atlas Stand
- Carry the Atlas Stand carrying bag to the setup location
- Unzip the carrying bag
- Remove the folded poles from the bag
- Remove the two Atlas Feet
- Connect the pole sections attached with elastic
- Connect the L-shaped poles to the Atlas Feet
Note: Each of the poles is labeled with a number at each end. Match the numbers on the pole attachment points. - Connect the curved poles to the long assembled poles
Note: Match the numbers labeled on the long poles to the numbers labeled on the curved pole attachment points. - Attach the bottom pole to the L-shaped poles and Atlas Feet
- Lift the large frame to the bottom of the frame and attach
What To Know

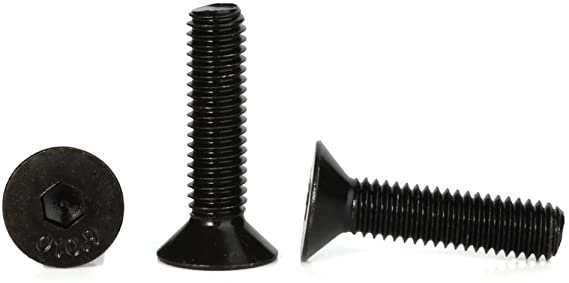

Replacement Bottom Pole Screw
These screws attach to the bottom of the Atlas Stand under the feet.
Details
M8-1.25 x 45mm flat head socket cap screws countersunk bolt
Where to Purchase
Important: Any M8-1.25 screw with a length between 30mm and 50mm is compatible with the bottom pole of the Atlas Stand.
What To Know
FAQ
Why is my stand crooked?
- The Atlas Stand will sometimes appear slightly crooked until a backdrop is added to the frame. The weight and tension of the backdrop is needed to fully straighten out the frame.
- If the frame is still crooked after the backdrop is attached, make sure the Atlas Feet are not crooked or uneven.
Should I match the numbers on the poles?
- The numbers labeled on each of the poles are meant to help with assembly, as the matching numbers indicate which pieces connect together.
