Why Power Requirements Matter
Using the correct power source for your Guac booth is essential for reliable performance and to prevent hardware issues. Below, we’ll walk through everything you need to know to ensure your booth stays powered up and running smoothly. Whether you’re at a local event, traveling internationally, or setting up somewhere with limited access to electricity.
Guac’s internal components, including the iPad, camera, printer, and Guac brain, all rely on consistent and stable power. Using an incorrect or unreliable power source can lead to:
- Possible damage to hardware
- Connection issues
- Failures with the printer, flash, camera, or any other internals of the booth

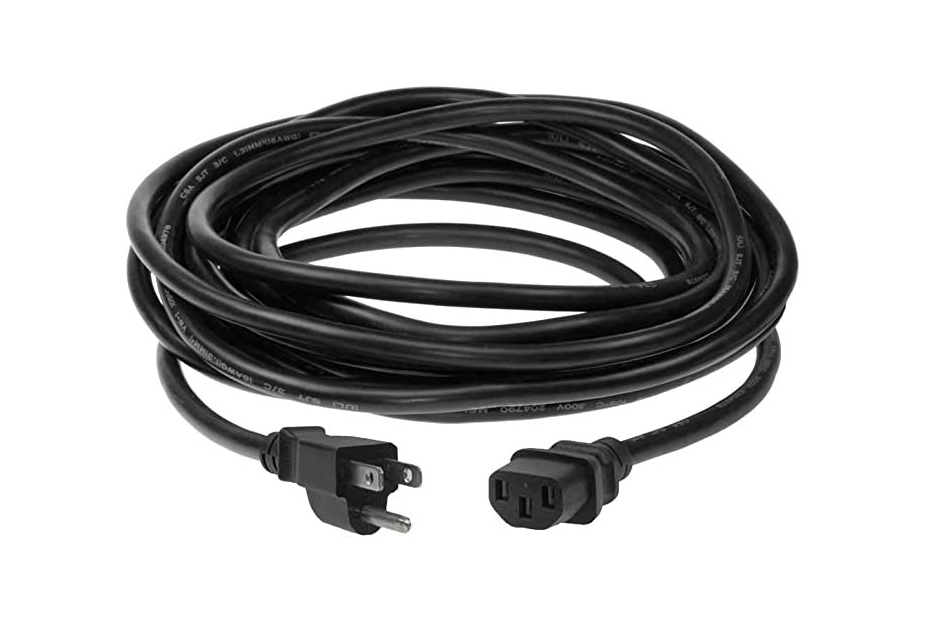

To prevent these issues, we recommend always using the provided power supply and avoiding off-brand extension cords, splitters, or power strips that are not rated for electronics.
What To Know
Basic Power Requirements For Guac
Here’s what Guac is designed to use:
-
Voltage: 110–120V
-
Frequency: 60Hz
-
Maximum power draw: About 1000W
-
Peak usage: Up to 1250W
-
Operating temperature: 55º to 90º F
-
Relative humidity: 0% to 60% non-condensing
Guac also includes:
-
One built-in USB-C port (30W)
-
Two 120V AC outlets
-
Two USB-A ports
IMPORTANT: When using within the U.S., we recommend plugging Guac directly into a grounded wall outlet or a high-quality surge protector.
What To Know
Powering The Guac Internationally
If you bought your Guac Booth outside of the United States, or you're planning to use it internationally, please read this carefully.

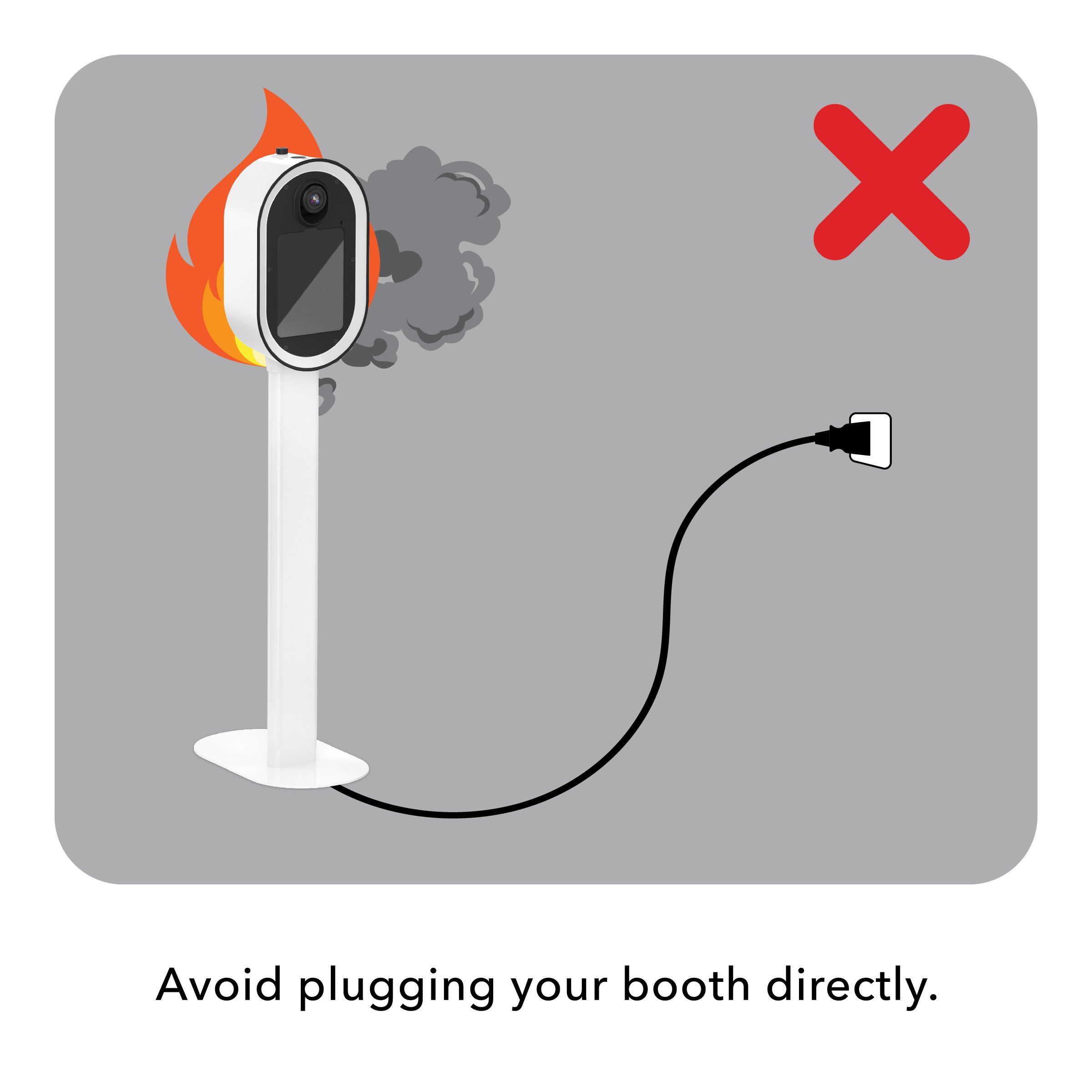

Guac is designed for 120V power. Most countries outside of the US use 220–240V power. Plugging Guac into this higher voltage without a step-down converter can cause serious damage and may void your warranty.

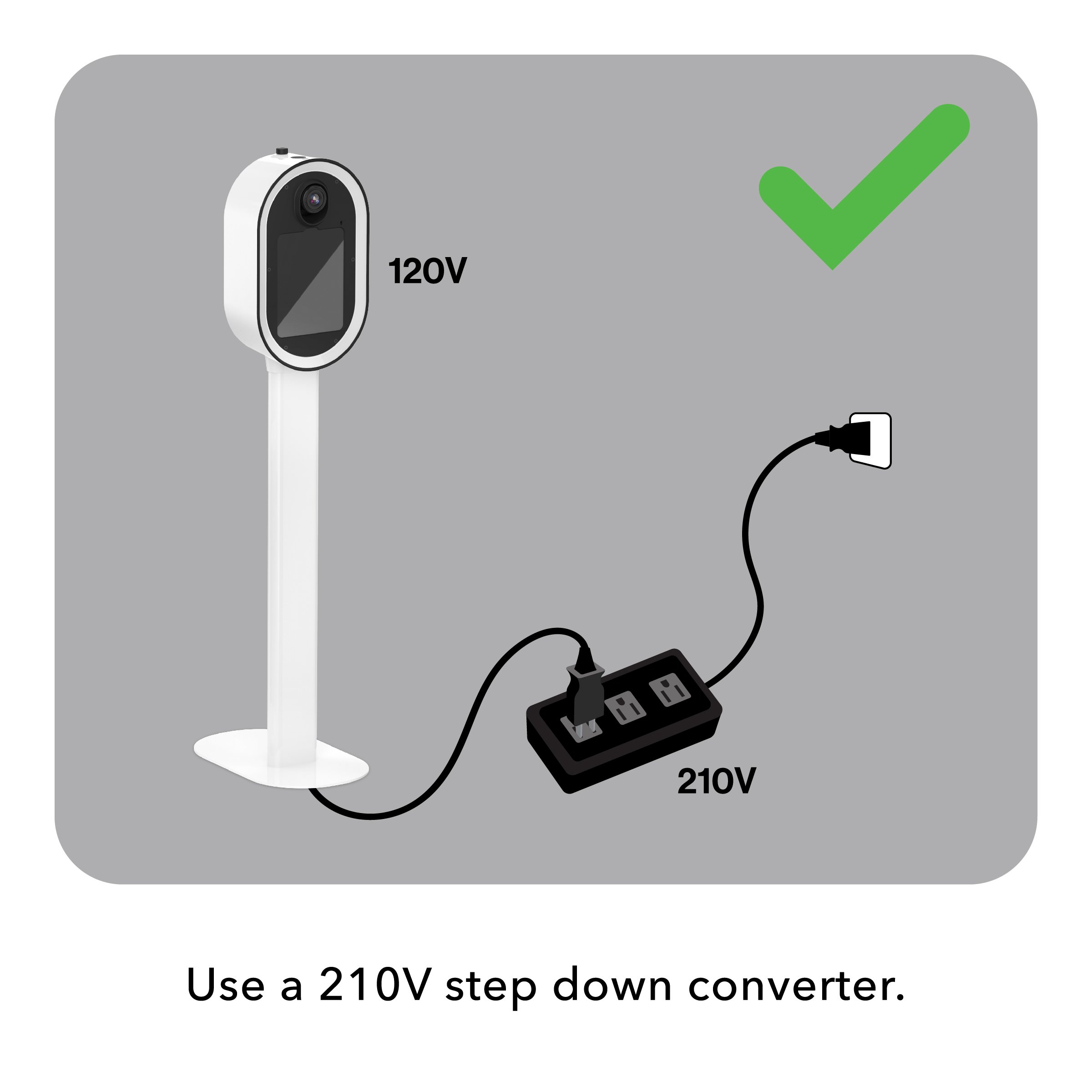

You will need a step-down power transformer that converts 220–240V down to 110–120V and supports at least 1000W of power. You can learn more about our recommended step-down converter in our Recommended Guac Accessories guide.
What To Know
Using Guac At An Event With No Power
If your event does not have access to electricity, you’ll need to use a portable power station or generator to run your Guac Booth.
Here’s what you’ll need to know to choose one that works:
Power Requirements:
-
Voltage: 110–120V
-
Frequency: 60Hz
-
Total draw: 900–1000W
-
Safe setup requires: 1500W continuous output
-
Each outlet on your power source should support at least 600W
This ensures Guac and Chips can run safely and consistently.
When choosing a power station or generator, be sure to check its wattage capacity and compare it to the amount of time you’ll be running the booth. For example, a 1500W-rated station may give you about 1 hour of use at full draw, or more time if power usage is lighter.
If you're unsure what to pick, feel free to reach out to our support team, and we’ll help guide you in the right direction.
What To Know
FAQ
Is it safe to plug other devices into the same outlet?
- We recommend giving Guac its own outlet when possible, especially during events when it's in heavy use. Sharing power can increase the chance of overloads or disconnections.
Is it safe to leave Guac plugged in for long periods?
- Yes, as long as you're using a grounded outlet or a quality surge protector, it’s safe to leave Guac plugged in. However, make sure to monitor the system and unplug it if you notice any issues.
What should I do if the booth shuts down unexpectedly?
- If the booth shuts down unexpectedly, check the power source first. Ensure it’s providing enough power (at least 1500W). If using a surge protector, make sure it’s rated for high power and hasn't been tripped. If everything seems fine, reach out to support for further troubleshooting.
