Slo Mo Mode
Slo-Mo is a Capture Mode exclusive to the Guac Booth that records a short video at 120 frames per second, and then slows it down to create a slow-motion effect.
In order to enable Slo-Mo Mode, certain settings need to be adjusted manually on the camera inside of Guac.
Once the event is over and you no longer need Slo-Mo Mode, it is recommended to restore the original camera settings before the next event.
What To Know
Camera Settings
When setting up the booth for Slo Mo Mode, it is necessary to adjust the Canon Camera settings as well as the in-app camera settings. Slo Mo Mode uses a different shutter speed and framerate than Video Mode, and the settings require disable Boomerang and Video Modes.
How To

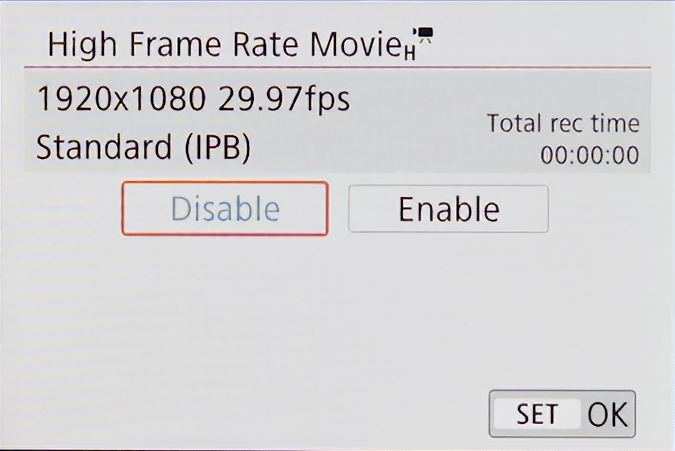

Adjust Canon Camera Settings
- Plug the Guac Booth into power
- Turn camera mode dial to the video camera icon
- Press Menu
- Select Movie rec quality
- Select High Frame Rate
- Set High Frame Rate to Enable
- Press Menu
- Select Shooting settings
- Go to Menu 5
- Go down to Focus mode
- Set to MF
- Turn the camera dial back to M
How To

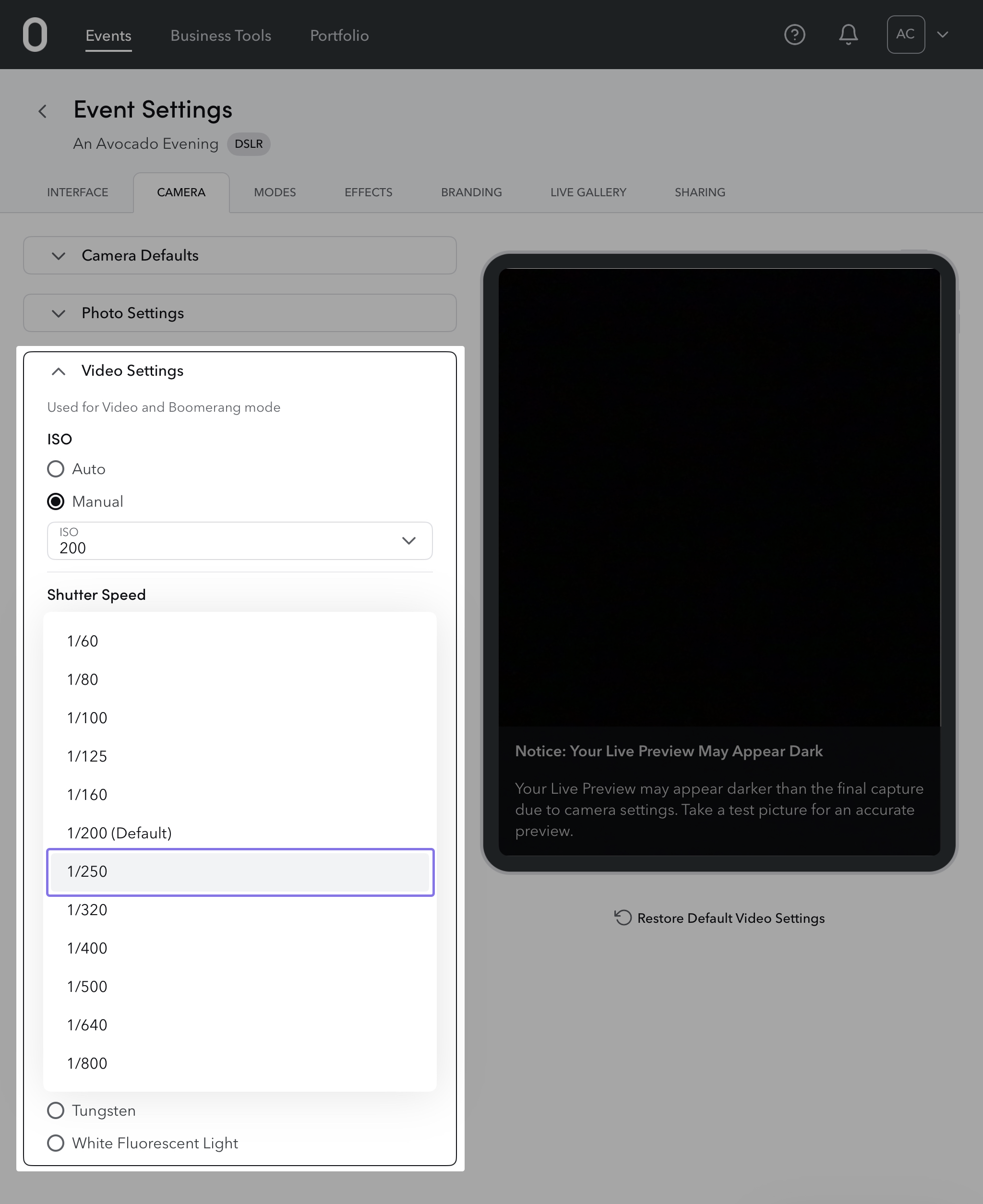

Adjust In-App Camera Settings
- Plug the Guac Booth into power
- Open the Fiesta iOS app
- Select an event or create a new event
- Tap Configure Event
- Tap Camera
- Tap Video Settings
- Tap Shutter Speed
- Select 1/250
Note: this is to accommodate for the longer recording time and adjusted Canon Camera settings for Slo Mo mode.
Learn more about DSLR iOS Camera Settings
What To Know
Toggling On Slo Mo Mode
When the Canon camera is set up for Slo-Mo with High Frame Rate enabled and Focus mode set to MF:
- Boomerang and Video Mode will also be recorded in slow motion.
- Photos and GIFs may not capture correctly.
Note: If Slo-Mo Mode is enabled, you will not be able to select Boomerang or Video Mode for that event.
What To Know
Reverting Canon Camera Settings
After your event when you’re done using Slo-Mo Mode, you will want to set the camera settings back to their original settings to restore functionality to Boomerang and Video Mode captures.
How To
Revert Canon Camera Settings
- Plug the Guac Booth into power
- Turn camera mode dial to the video camera icon
- Press Menu
- Select Movie rec quality
- Select High Frame Rate
- Set High Frame Rate to Disable
- Go to Menu 5
- Go down to Focus mode
- Set to AF
- Turn the camera dial back to M
What To Know
FAQ
Help! I can't turn on Video or Boomerang mode when Slo Mo Mode is on!
- Video and Boomerang modes will be disabled and greyed out when Slo Mo Mode is selected because the modes use different camera settings
- Slo Mo Mode will also be disabled and greyed out when either Boomerang or Video modes are selected
Why are my Videos and Boomerangs recording in slow motion?
- If the Camera Settings for Slo Mo mode are not reverted on the Canon Camera after a Slo Mo event is run, Video and Boomerang will record with too many frames and play back in a slow motion fashion
- Reverting the Canon Camera Settings should resolve this issue
Why are my Slo Mo captures jittery and skipping?
- If the Canon Camera settings are not adjusted properly, too few frames will be captured, resulting in a jittery, skipping appearance
