What are Ethernet Settings?
When using Guac Photo Booth, correct Ethernet settings are required to allow the Fiesta iOS App to connect to the Guac Brain, and interact with the LED Ring and printer.
A correctly set up Ethernet connection will allow for the adjustment of the LED Ring brightness, color, and pattern, as well as adjustments to all of the printing settings when connected to the Chips printer utilizing CUPS.
IMPORTANT: The Ethernet settings will only appear in your iPad's Settings app when the iPad is connected to a Guac Photo Booth.
Learn more about the Guac LED Ring
How To

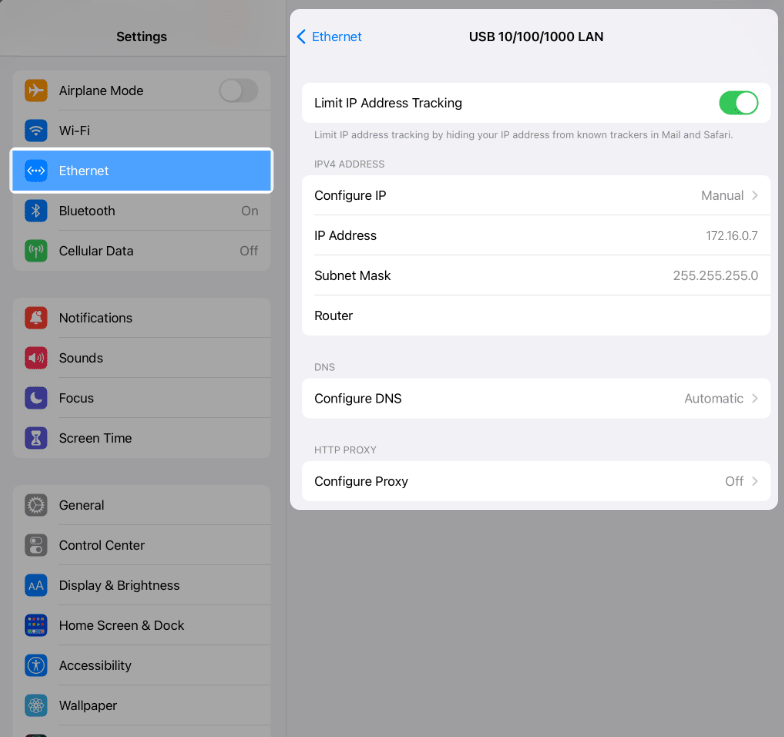

Connect Ethernet
- Open your iPad's Settings app
- Tap Ethernet in the left navigation bar
- Tap on the Ethernet interface shown on the right
- Note: your device may show AX88179A or USB 10/100/1000 LAN as the interface
- Tap Configure IP
- Select Manual
- Tap IP Address
- Enter in 172.16.0.7
- Tap Subnet Mask
- Enter in 255.255.255.0
- Tap Save
What To Know
Conflicting IP Addresses

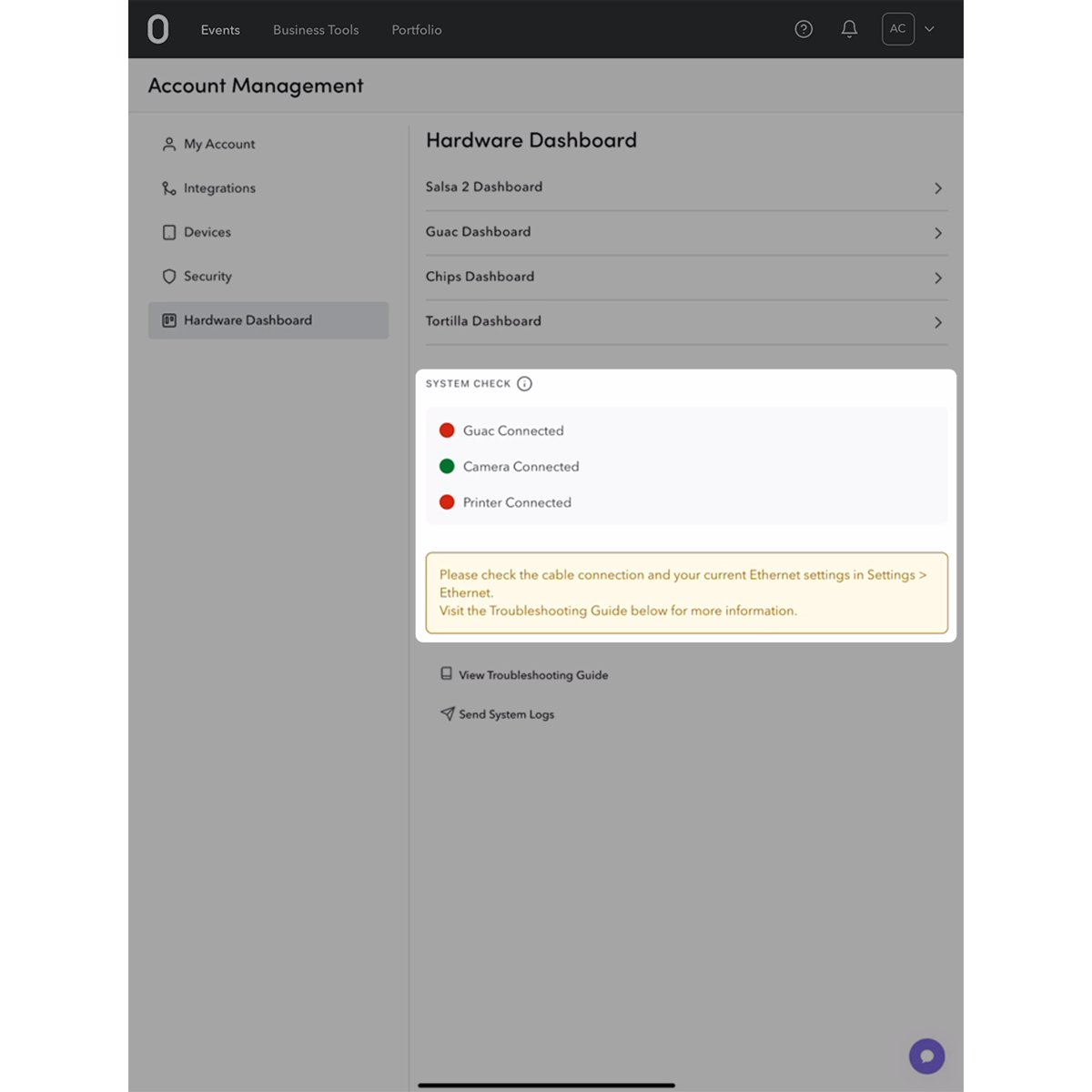

When setting up your iPad's Ethernet settings and connecting to Guac, you may experience an issue where the Wi-Fi IP address assigned to your device by the Wi-Fi network that your iPad is connected to conflicts with Guac's primary Ethernet IP address. When this issue occurs, it will present as Guac failing to connect in Fiesta, a hardwired printer not connecting, and the LED Ring not properly adjusting.
If you are experiencing these issues, check out our IP Address Troubleshooting Guide
